TECH PUBLICDatasheet (PDF)

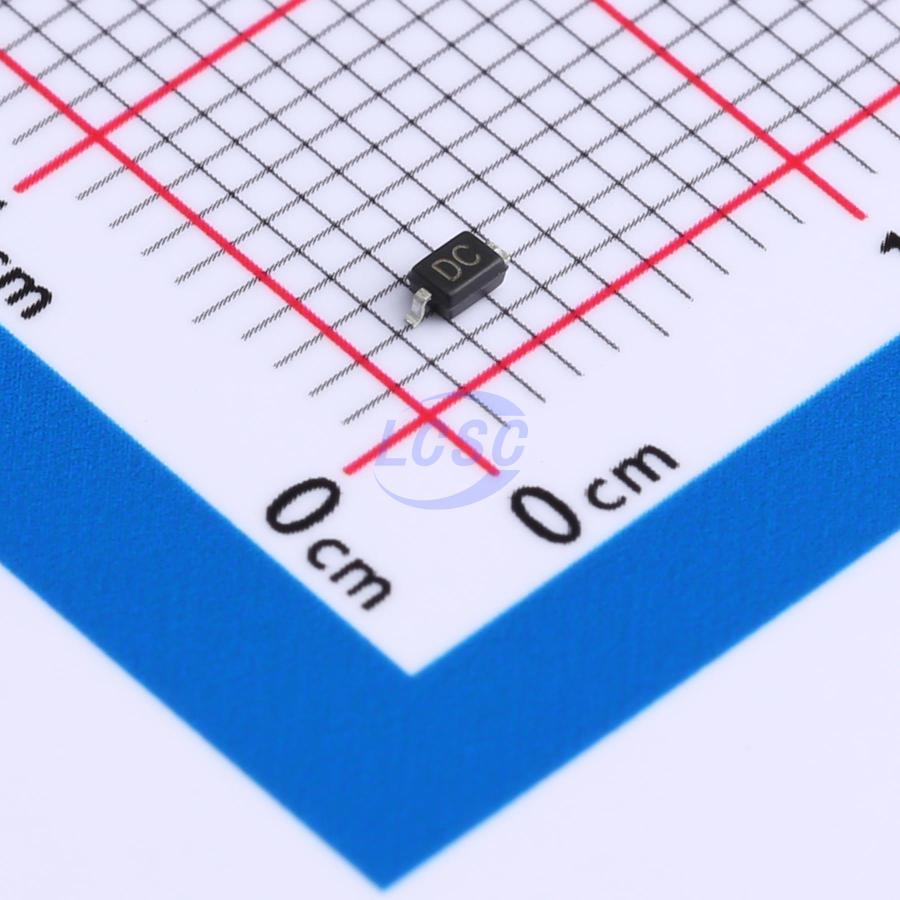

TPGC12C-1
29VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 12VWM 29VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGC12C-1
- Store part #
- C5197388
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C5197388
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.05 | ₹30.25 |
| 50+ | ₹5.90 | ₹295.00 |
| 150+ | ₹5.79 | ₹868.50 |
| 500+ | ₹5.70 | ₹2,850.00 |
5 × ₹6.05
₹30.25
excl. GST
₹35.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGC12C-1
₹30.25 for 5 + GST
Specifications
- Clamping Voltage
- 29V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 330W@8/20us
- Voltage - Breakdown
- 13V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & tablets
- Portable instruments
- Peripherals
Key features
- 330W peak pulse power (8/20μs)
- Low working voltage: 12V
- Ultra-low capacitance: 1.0 pF typical
- Ultra-low leakage: nanoamp-level
- Low clamping voltage
- Protects one power or data line
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±30kV
- Contact discharge: ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- RoHS compliant
