TECH PUBLICDatasheet (PDF)

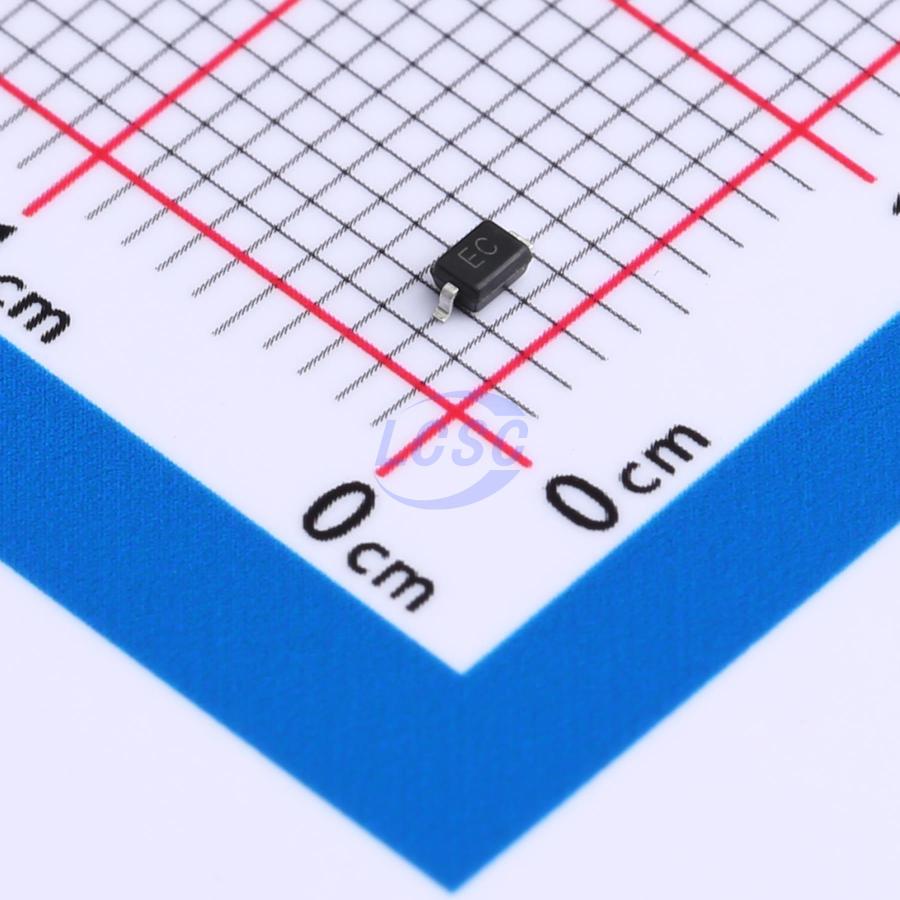

TPGC15C-1
31VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 15VWM 31VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPGC15C-1
- Store part #
- C5197387
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,055 in stock
#C5197387
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.27 | ₹41.35 |
| 50+ | ₹8.08 | ₹404.00 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 500+ | ₹7.83 | ₹3,915.00 |
5 × ₹8.27
₹41.35
excl. GST
₹48.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPGC15C-1
₹41.35 for 5 + GST
Specifications
- Clamping Voltage
- 31V
- Peak Pulse Power Dissipation (Ppp)
- 330W@8/20us
- Voltage - Breakdown
- 16V
- type
- ESD
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 330W peak pulse power (8/20μs)
- Low operating: 15V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
