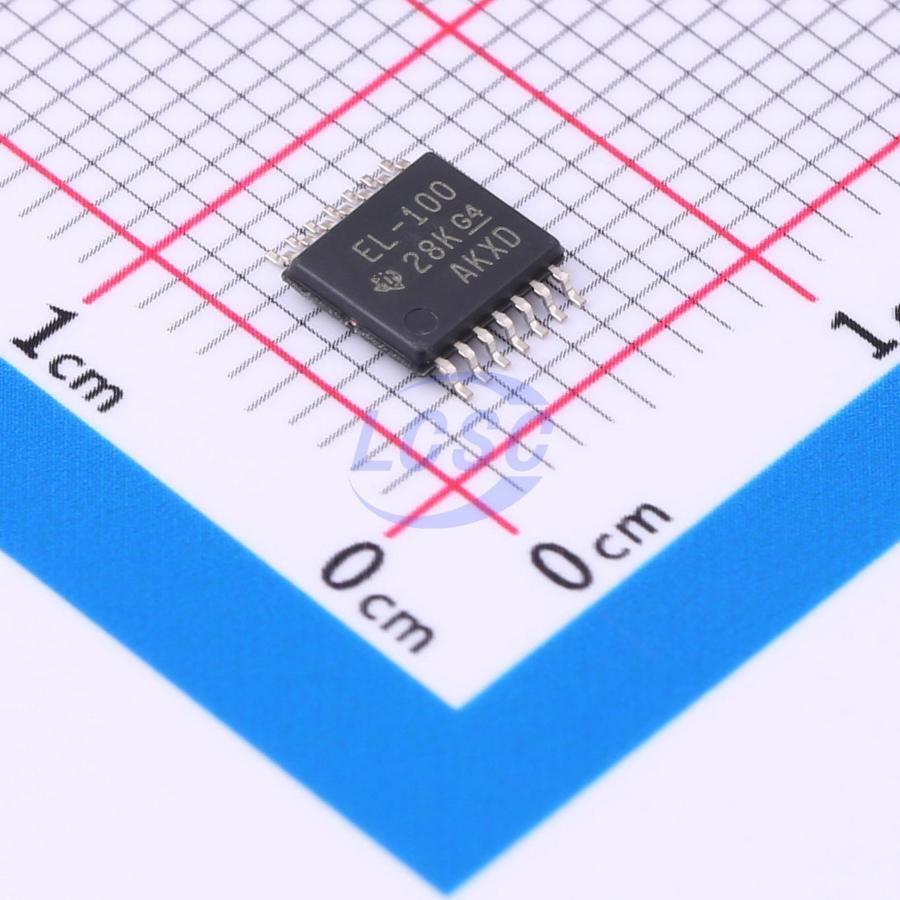

TPL0102-100PWR

The TPL0102 features two linear-taper digital potentiometers (DPOTs) with 256 tap positions each. Each voltage divider can be used as a three-terminal voltage divider or a two-terminal rheostat. The TPL0102-100 has an end-to-end resistance of 100kΩ. The TPL0102 includes non-volatile memory (EEPROM) for storing tap positions. This allows tap positions to be retained even during power loss, and automatically restored upon power-up. The internal registers of the TPL0102 are accessible via the I²C interface. The TPL0102 is available in a 14-pin MicroQFN and a 14-pin TSSOP package, rated for a temperature range of -40°C to 85°C.

Applications

• Adjustable gain amplifier and offset trimming
• Adjustable power supply
• Precision calibration of setpoint thresholds
• Sensor trimming and calibration
• Mechanical potentiometer replacement

Key features

• Dual 256-position resolution potentiometers
• Non-volatile memory for tap setting storage
• 100kΩ end-to-end resistance (TPL0102-100)
• Power-on response time for volatile tap settings: <100μs
• ±0.5 LSB INL, ±0.25LSB DNL (voltage divider mode)
• 4ppm/°C ratiometric temperature coefficient
• I²C-compatible serial interface
• 2.7V to 5.5V single-supply operation
• ±2.25V to ±2.75V dual-supply operation
• Operating temperature range: -40°C to 85°C
• Shutdown mode
• ESD performance tested per JESD 22
• 2000V Human Body Model (A114-B, Class II)
• 1000V Charged Device Model (C101)
