TECH PUBLICDatasheet (PDF)

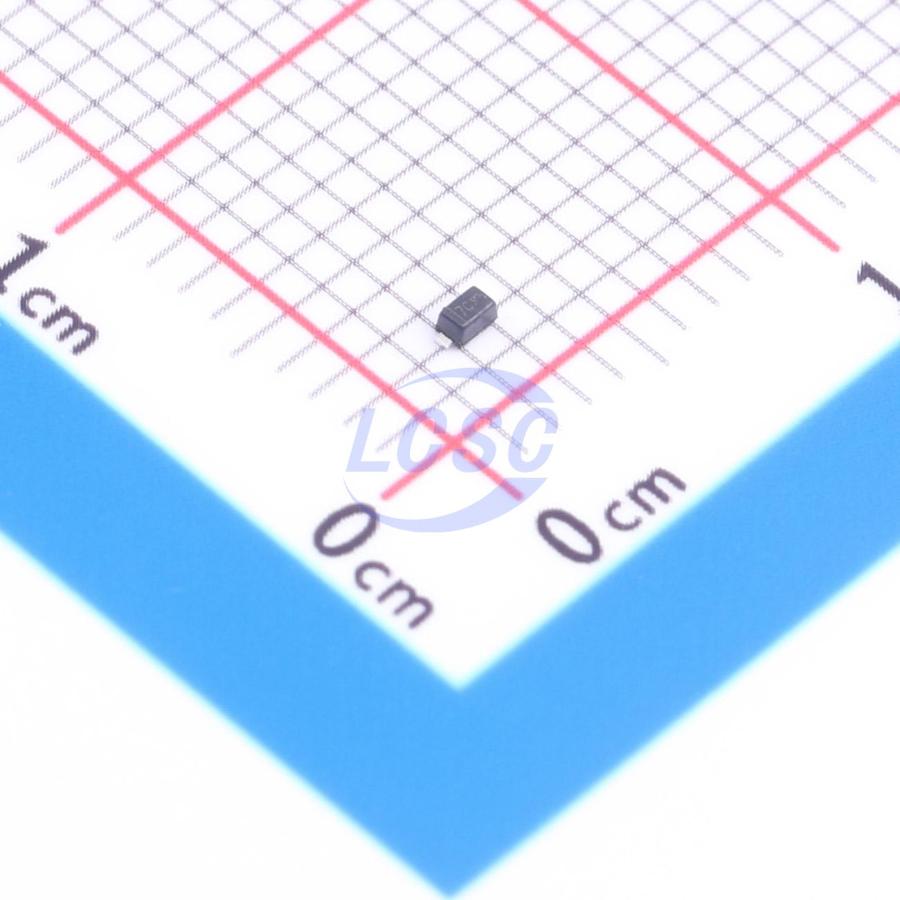

TPLESD5D7.0CT1G
15V 8A@8/20us 120W@8/20us 8V 7V SOD-523 TVS Diodes RoHS
SOD-523ROHS CompliantActive
ESD DIODE 7VWM 15VC SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPLESD5D7.0CT1G
- Store part #
- C51939658
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C51939658
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.40 | ₹68.00 |
| 200+ | ₹2.63 | ₹526.00 |
| 600+ | ₹2.21 | ₹1,326.00 |
| 3,000+ | ₹1.94 | ₹5,820.00 |
| 9,000+ | ₹1.73 | ₹15,570.00 |
| 21,000+ | ₹1.61 | ₹33,810.00 |
20 × ₹3.40
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPLESD5D7.0CT1G
₹68.00 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Voltage - Breakdown
- 8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
