TECH PUBLICDatasheet (PDF)

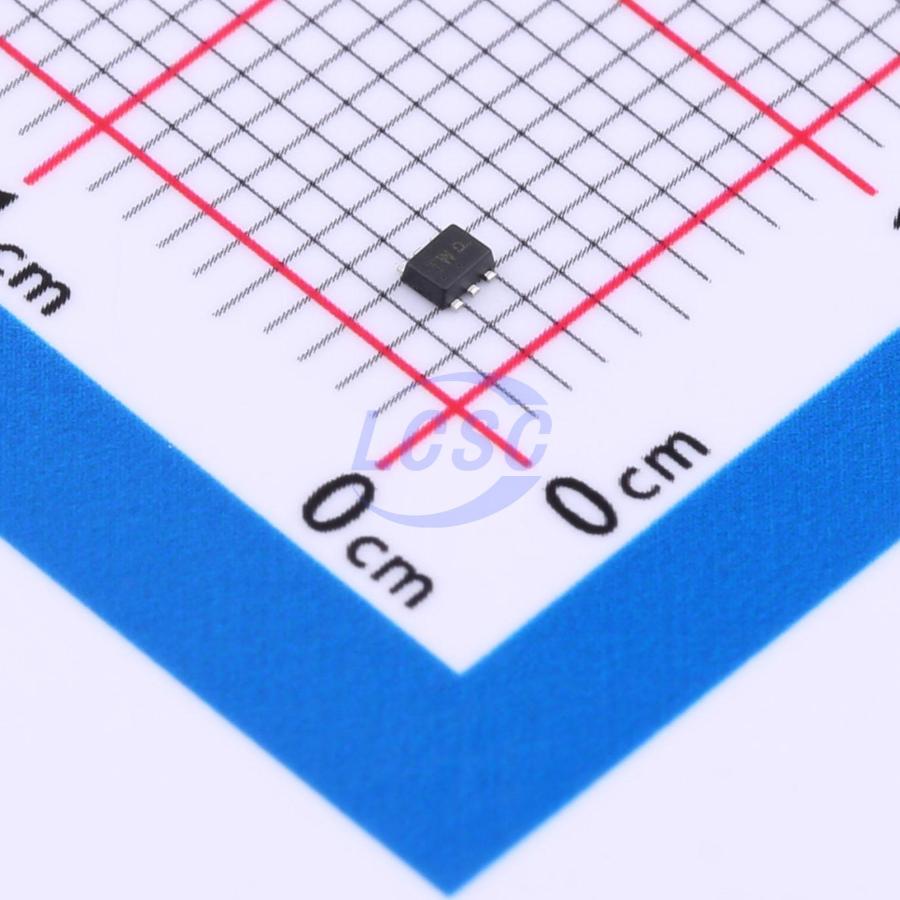

TPM3155EX6-1
N-Channel+P-Channel 20V 0.75A 0.7A Surface Mount SOT-563
SOT-563RoHSActive
MOSFET N-CH+P-CH ARR 20V 0.75A 0.7A SOT-563
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM3155EX6-1
- Store part #
- C5182090
- Package / case
- SOT-563
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,035 in stock
#C5182090
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.52 | ₹102.60 |
| 50+ | ₹16.14 | ₹807.00 |
| 150+ | ₹14.26 | ₹2,139.00 |
| 500+ | ₹11.92 | ₹5,960.00 |
| 2,500+ | ₹10.36 | ₹25,900.00 |
| 4,000+ | ₹9.74 | ₹38,960.00 |
5 × ₹20.52
₹102.60
excl. GST
₹121.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPM3155EX6-1
₹102.60 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 20pF;25pF
- Ciss-Input Capacitance
- 120pF;170pF
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 750mA;700mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 380mΩ@4.5V;520mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
20V, 3.5A, R DS(ON) = 40 mΩ at VGS = 4.5V. RDS(ON) = 50 mΩ at VGS = 2.5V. -20V, -2.8A, RDS(ON) = 85 mΩ at VGS = -4.5V. RDS(ON) = 100 mΩ at VGS = -2.5V.
Applications
- Notebook
- Load Switch
- Networking
- Hand-held Instruments
Key features
- ESD Protected
