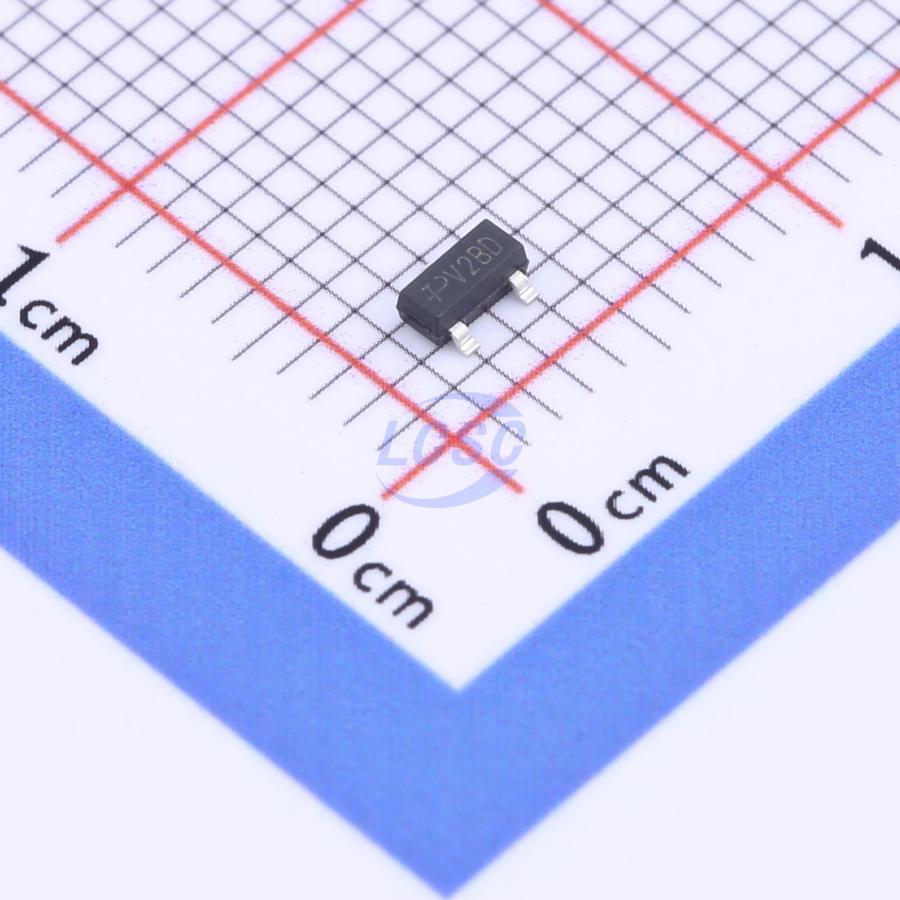

TPM60V2PS3
60V 1.6A 1.5W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 60V 1.6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM60V2PS3
- Store part #
- C3021111
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,670 in stock
#C3021111
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.59 | ₹82.95 |
| 50+ | ₹14.54 | ₹727.00 |
| 150+ | ₹13.65 | ₹2,047.50 |
| 500+ | ₹12.56 | ₹6,280.00 |
| 3,000+ | ₹11.70 | ₹35,100.00 |
| 6,000+ | ₹11.40 | ₹68,400.00 |
5 × ₹16.59
₹82.95
excl. GST
₹97.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM60V2PS3
₹82.95 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 19.6pF
- Ciss-Input Capacitance
- 444.2pF
- Pd - Power Dissipation
- 1.5W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.6A
- Reverse Transfer Capacitance (Crss)
- 17.9pF
- RDS(on)
- 240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Applications
- Load/power switch
- Interface switch
- Logic level translation
Key features
- Drain-source voltage (VDS) = -60V, drain current (ID) = -1.6A
- RDS(ON) < 200mΩ at VGS = -10V
- RDS(ON) < 240mΩ at VGS = -4.5V
