TECH PUBLICDatasheet (PDF)

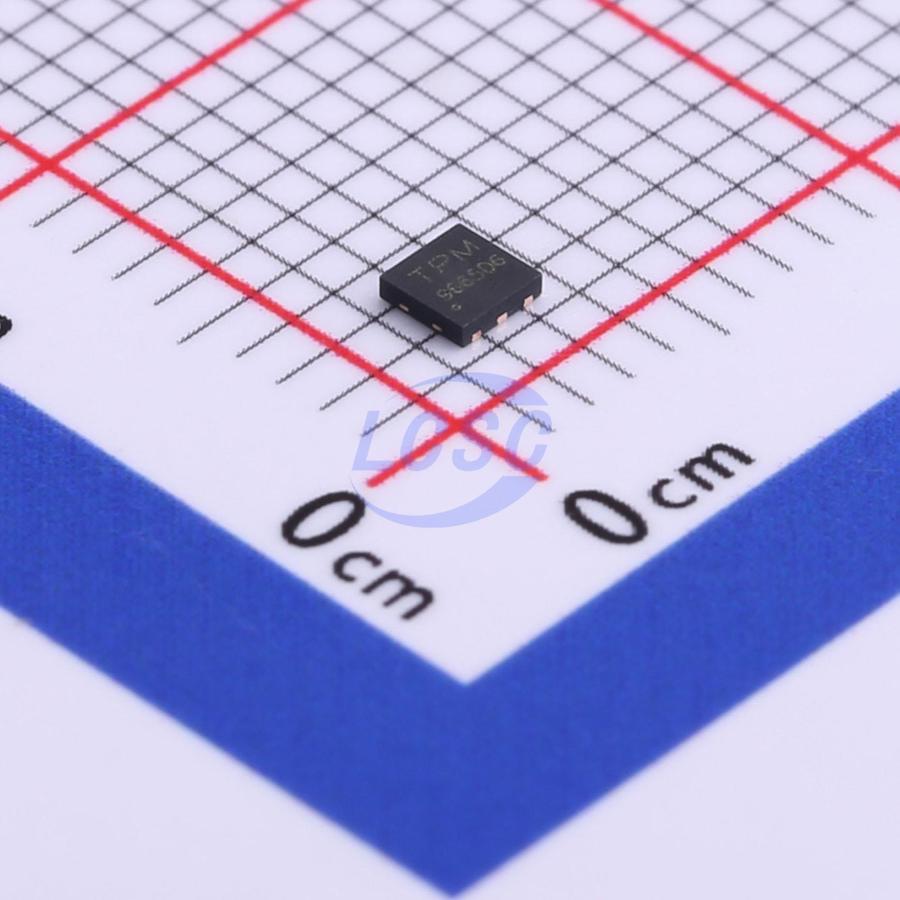

TPM9665D6
P-Channel 17V 6.8A 2.5W Surface Mount UDFN-6(2x2)
UDFN-6(2x2)RoHSActive
MOSFET P-CH 17V 6.8A UDFN-6(2x2)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPM9665D6
- Store part #
- C587157
- Package / case
- UDFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C587157
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹9.88 | ₹494.00 |
| 150+ | ₹8.69 | ₹1,303.50 |
| 500+ | ₹7.79 | ₹3,895.00 |
| 3,000+ | ₹6.38 | ₹19,140.00 |
| 6,000+ | ₹6.02 | ₹36,120.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPM9665D6
₹61.40 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 17V
- Output Capacitance(Coss)
- 108pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 684pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 72pF
- RDS(on)
- 25mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 700mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
Applications
- Load/power switch
- Interface switch
- Battery management for ultra-compact portable electronics
- Logic level translation
Key features
- Drain-Source Voltage (VDS): -17V
- Drain Current (ID): -6.8A
- On-State Resistance (RDS(ON)) (at VGS = -4.5V): <35mΩ
- On-State Resistance (RDS(ON)) (at VGS = -2.5V): <45mΩ
- On-State Resistance (RDS(ON)) (at VGS = -1.8V): <72mΩ
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM20P8D6-2#C48639040TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 1,000 | ₹14.10 · 1,000 in stock | View |
 | TPWPM1481#C48639042TECH PUBLIC · DFN-6L(2x2) | TECH PUBLIC | DFN-6L(2x2) | 520 | ₹10.35 · 520 in stock | View |
 | TPIRLHS2242TRPBF#C48639044TECH PUBLIC · DFN-6L(2x2) | TECH PUBLIC | DFN-6L(2x2) | 980 | ₹11.83 · 980 in stock | View |
 | TPSIA421DJ#C48639045TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 1,000 | ₹11.93 · 1,000 in stock | View |
 | TPMPB15XP#C48639046TECH PUBLIC · DFN2X2-6L | TECH PUBLIC | DFN2X2-6L | 435 | ₹11.51 · 435 in stock | View |
