TECH PUBLIC

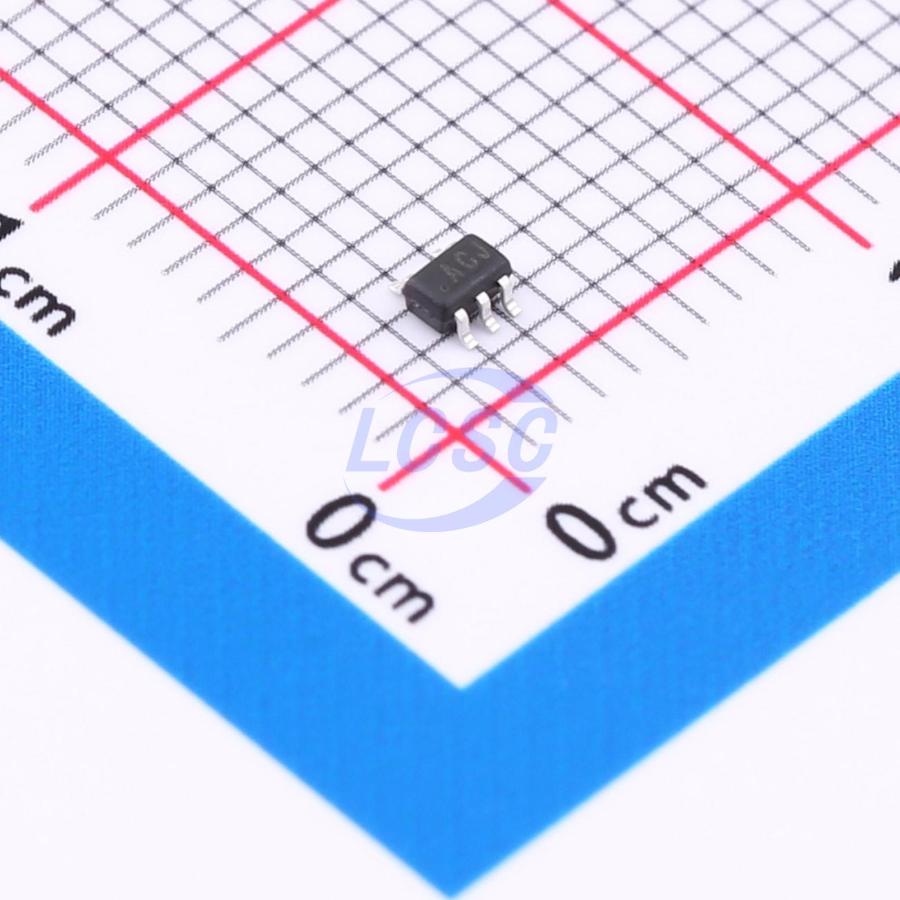

TPMAX4715EXK+T

1 1.8Ω 1.6V~5.5V SOT-353 Analog Switches, Multiplexers, Demultiplexers

SOT-353RoHSActive

Single-Supply SPST Analog Switches

Manufacturer: TECH PUBLIC
Manufacturer part #: TPMAX4715EXK+T
Store part #: C46472308
Package / case: SOT-353
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C46472308

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹44.88	₹224.40
50+	₹35.24	₹1,762.00
150+	₹31.12	₹4,668.00
500+	₹25.96	₹12,980.00
3,000+	₹23.66	₹70,980.00
6,000+	₹22.28	₹1,33,680.00

Quantity (min 5, multiples of 5)

5 × ₹44.88

₹224.40

excl. GST

₹264.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPMAX4715EXK+T

₹224.40 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 1.8Ω
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.021 g

Overview

A low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Key features

Low On-resistance, R0n = 1.5Ω
1.8V Logic Compatible Control Pin Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
