TECH PUBLIC

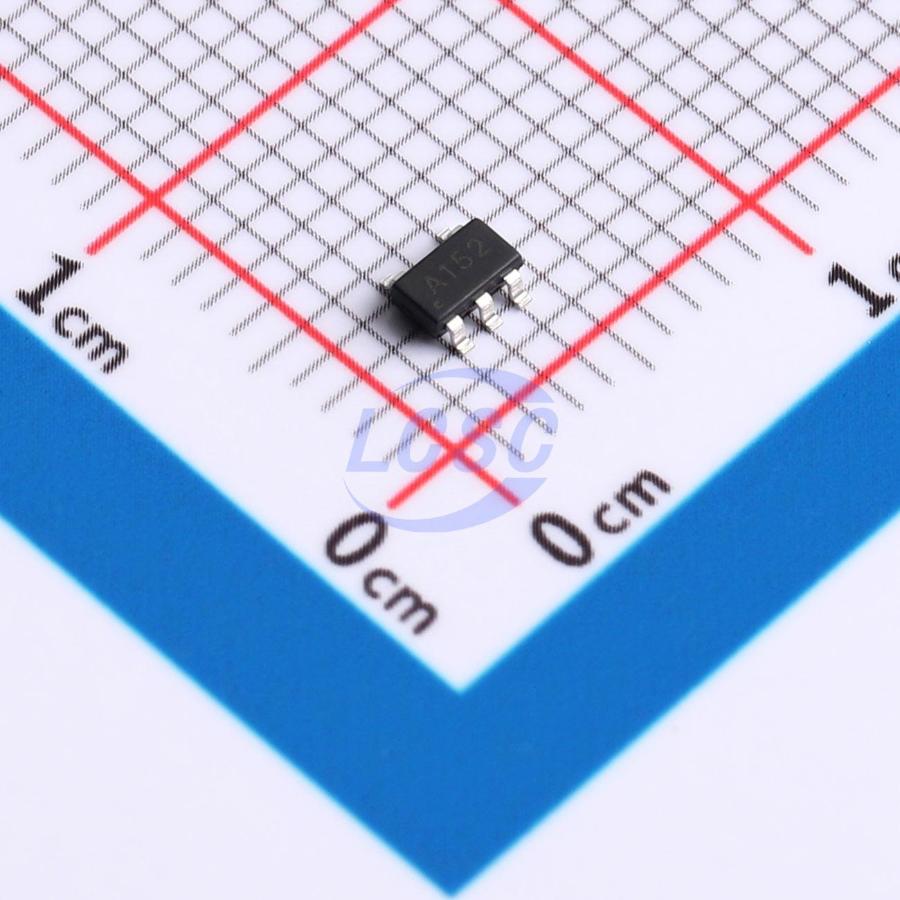

TPME3103AM5G

Step-down type 1.5MHz Adjustable 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPME3103AM5G
Store part #: C53100535
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,515 in stock

#C53100535

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹10.44	₹52.20
50+	₹8.19	₹409.50
150+	₹7.06	₹1,059.00
500+	₹6.22	₹3,110.00
3,000+	₹5.54	₹16,620.00
6,000+	₹5.21	₹31,260.00

Quantity (min 5, multiples of 5)

5 × ₹10.44

₹52.20

excl. GST

₹61.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPME3103AM5G

₹52.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 1.5MHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Topology: Buck
Output Type: Adjustable
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 1A
Quiescent Current: 150uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

Applications

Networking equipment
IP cameras
LCD TVs
DSL modems
Wireless routers
Digital TVs
Set-top boxes

Key features

Supply voltage range: 2.5V to 5.5V
Guaranteed 1A continuous load current
0.6V reference voltage with 2% accuracy
Cycle-by-cycle peak current limiting
Hysteretic PWM architecture for fast transient response
Internal soft-start limits inrush current
Current limit protection
Internal switch (high-side/low-side) on-resistance: 250/200 mΩ
Fixed 1.5MHz switching frequency
Up to 95% efficiency
RoHS compliant and halogen-free
Compact SOT23-5 package
