TECH PUBLICDatasheet (PDF)

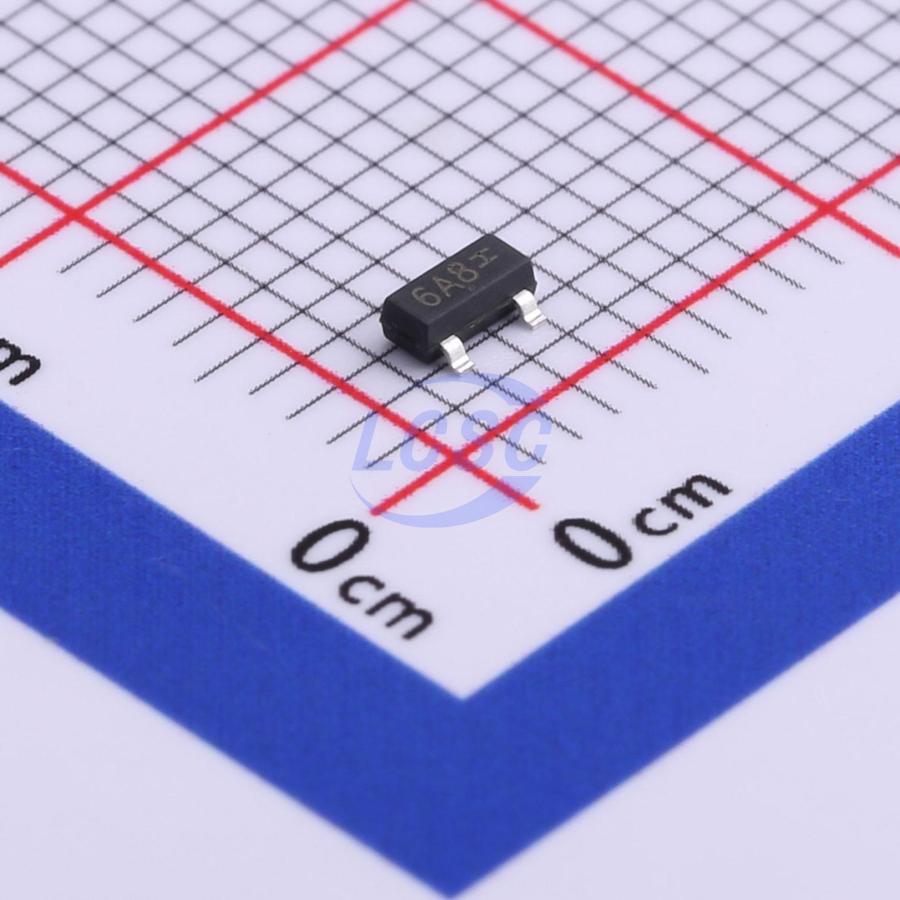

TPMMBZ6V8ALT1G
17.2VC Clamp 6A@8/20us Ipp SOT-23
SOT-23RoHSActive
4.5VWM 17.2VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMMBZ6V8ALT1G
- Store part #
- C587145
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,420 in stock
#C587145
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.06 | ₹81.20 |
| 200+ | ₹3.29 | ₹658.00 |
| 600+ | ₹2.87 | ₹1,722.00 |
| 3,000+ | ₹2.10 | ₹6,300.00 |
| 9,000+ | ₹1.88 | ₹16,920.00 |
| 21,000+ | ₹1.76 | ₹36,960.00 |
20 × ₹4.06
₹81.20
excl. GST
₹95.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMMBZ6V8ALT1G
₹81.20 for 20 + GST
Specifications
- Clamping Voltage
- 17.2V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 4.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation Set Top Box
Key features
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30 kV (air), ±30 kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Working voltages: 4.5V
- Protects one bidirectional line or
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
