TECH PUBLICDatasheet (PDF)

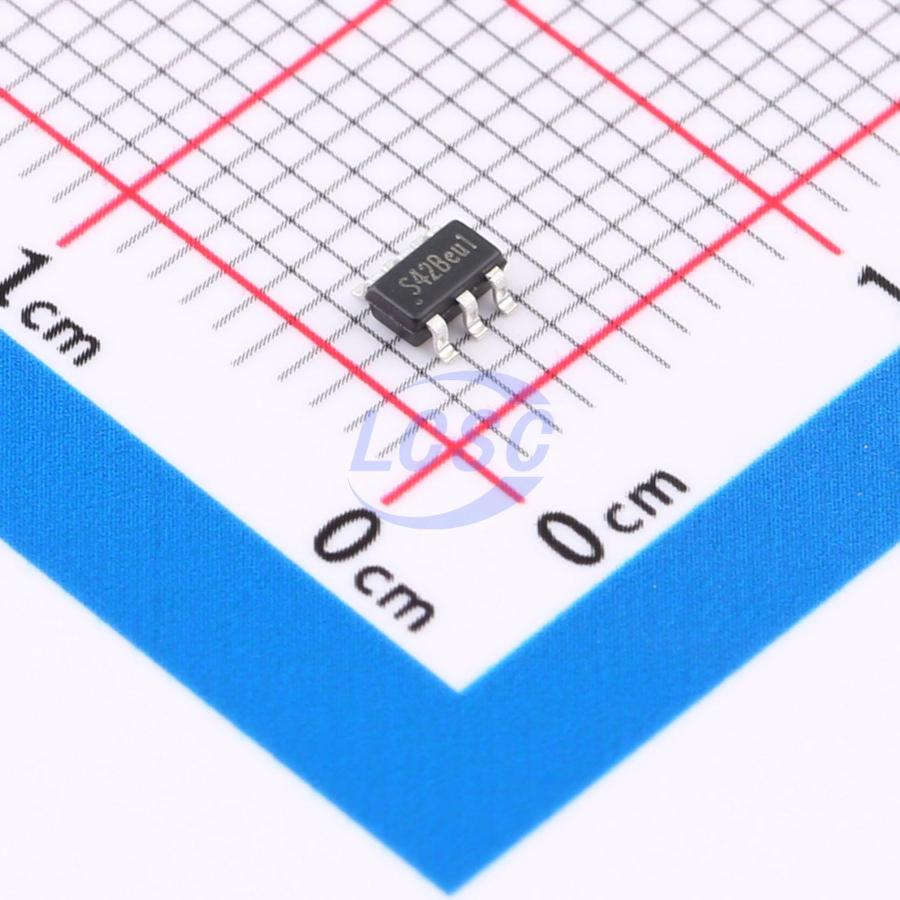

TPMP1470GJ-Z
Step-down type 600kHz Adjustable 800mV~18V 2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
18V 2A 600KHz Synchronous Step-Down Converter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMP1470GJ-Z
- Store part #
- C558426
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,460 in stock
#C558426
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.28 | ₹181.40 |
| 50+ | ₹28.10 | ₹1,405.00 |
| 150+ | ₹24.59 | ₹3,688.50 |
| 500+ | ₹20.22 | ₹10,110.00 |
| 3,000+ | ₹18.27 | ₹54,810.00 |
| 6,000+ | ₹17.09 | ₹1,02,540.00 |
5 × ₹36.28
₹181.40
excl. GST
₹214.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMP1470GJ-Z
₹181.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 600kHz
- Number of Outputs
- 1
- Features
- Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~18V
- Output Current
- 2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
The TPMP1470 is a fully integrated, high efficiency 2.0A synchronous rectified step-down converter. The TPMP1470 operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The TPMP1470 requires a minimum number of readily available standard external components and is available in a 6-pin SOT23 ROHS compliant package.
Applications
- Distributed Power Systems
- Digital Set Top Boxes
- Flat Panel Television and Monitors
- Wireless and DSL Modems
- Notebook Computer
Key features
- High Efficiency: Up to 95% max
- 600KHz Frequency Operation
- 2.0A Output Current
- No Schottky Diode Required
- 3.5V to 18V Input Voltage Range
- 0.8V Reference
- Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
- Integrated internal compensation
- Stable with Low ESR Ceramic Output Capacitors
- Over Current Protection with Hiccup-Mode
- Input over voltage protection(OVP)
- Thermal Shutdown
- Inrush Current Limit and Soft Start
- Available in SOT23-6 Package
- -40°C to +85°C Temperature Range
