TECH PUBLIC

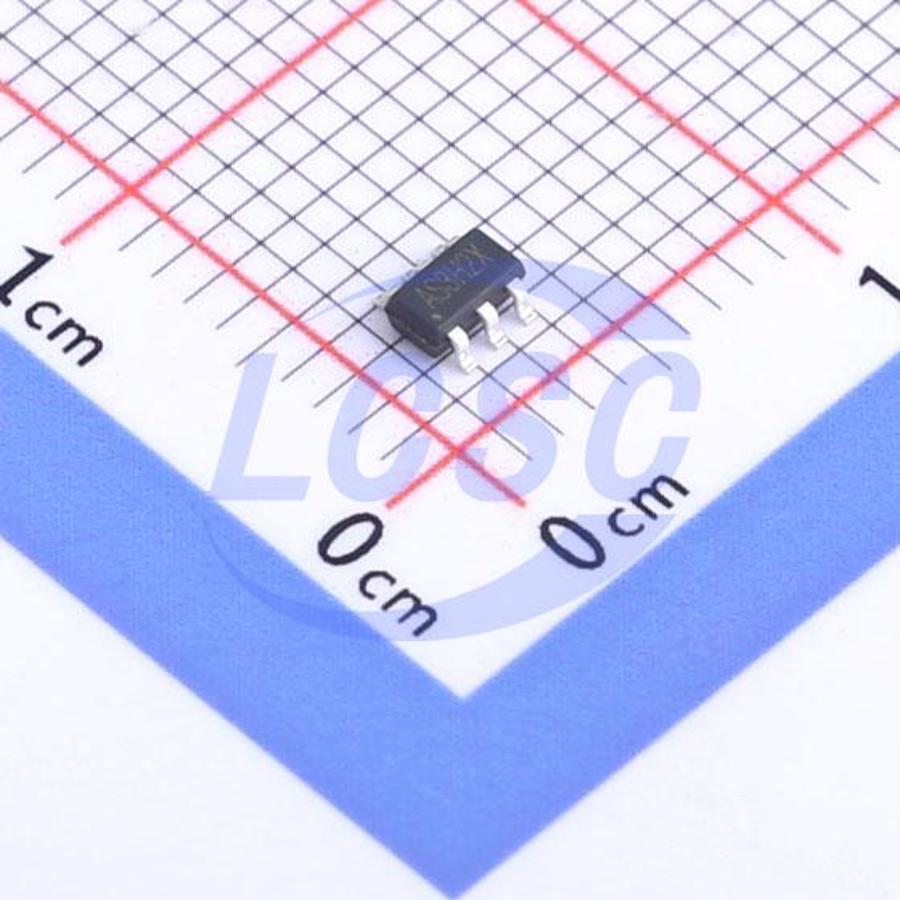

TPMP1470GJ-Z-B

Step-down type 500kHz SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

17V 3A 500KHz Synchronous Step-Down Converter

Manufacturer: TECH PUBLIC
Manufacturer part #: TPMP1470GJ-Z-B
Store part #: C2841431
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

16,335 in stock

#C2841431

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
5+	₹23.99	₹119.95
50+	₹21.26	₹1,063.00
150+	₹20.08	₹3,012.00
500+	₹18.61	₹9,305.00
3,000+	₹16.17	₹48,510.00
6,000+	₹15.78	₹94,680.00

Quantity (min 5, multiples of 5)

5 × ₹23.99

₹119.95

excl. GST

₹141.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPMP1470GJ-Z-B

₹119.95 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Step-down type
Frequency - Switching: 500kHz
Number of Outputs: 1
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The TPMP1470-B is a fully integrated, high efficiency 3.0A synchronous rectified step-down converter. The TPMP1470-B operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The TPMP1470-B requires a minimum number of readily available standard external components and is available in a 6-pin

Applications

Distributed Power Systems
Digital Set Top Boxes
Flat Panel Television and Monitors
Wireless and DSL Modems
Notebook Computer

Key features

High Efficiency: Up to 96%
500KHz Frequency Operation
3A Output Current
No Schottky Diode Required
4.5V to 17V Input Voltage Range
0.8V Reference
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
Integrated internal compensation
Stable with Low ESR Ceramic Output Capacitors
Over Current Protection with Hiccup-Mode
Thermal Shutdown
Inrush Current Limit and Soft Start
Available in SOT23-6 Package
-40°C to +85°C Temperature Range
