TECH PUBLICDatasheet (PDF)

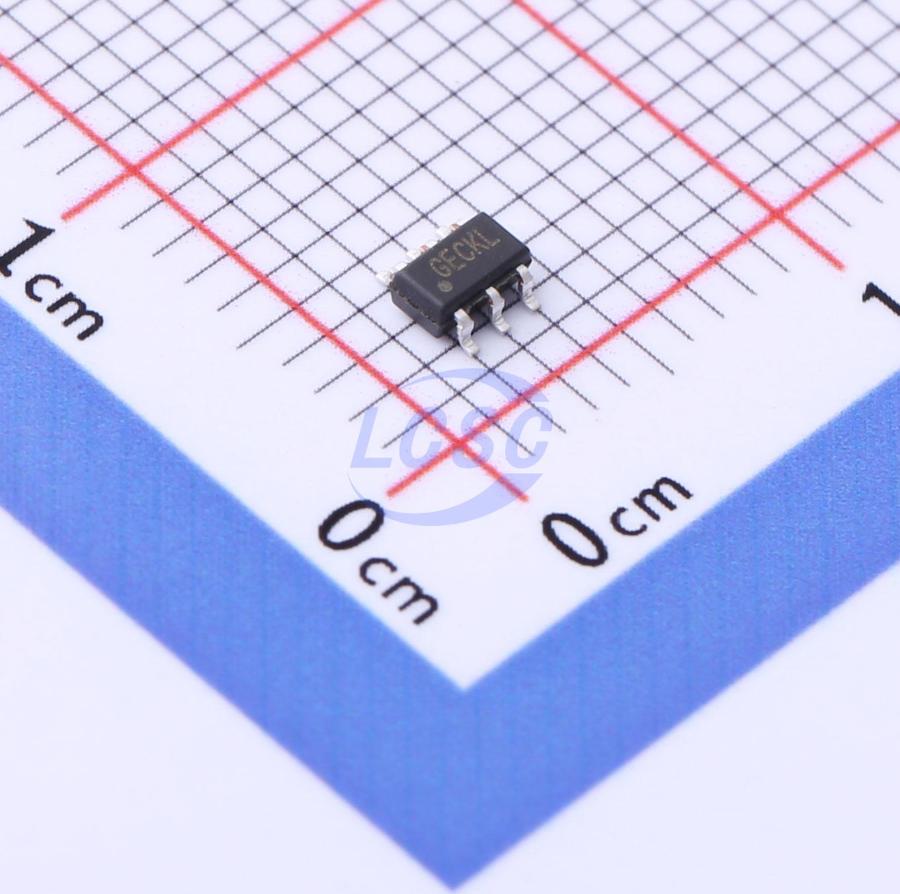

TPMP2359DJ
Step-down type 1.4MHz Adjustable 800mV~5V 1.2A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
1.2A 1.4MHz 30V PWM Sync Step-Down DC/DC Converter
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMP2359DJ
- Store part #
- C2959845
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C2959845
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.93 | ₹199.65 |
| 50+ | ₹32.44 | ₹1,622.00 |
| 150+ | ₹28.70 | ₹4,305.00 |
| 500+ | ₹25.89 | ₹12,945.00 |
| 6,000+ | ₹22.52 | ₹1,35,120.00 |
| 9,000+ | ₹22.13 | ₹1,99,170.00 |
5 × ₹39.93
₹199.65
excl. GST
₹235.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMP2359DJ
₹199.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 1.4MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~30V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~5V
- Output Current
- 1.2A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
The TPMP2359 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 1.5A peak output current over a wide input supply range, with excellent load and line regulation. The TPMP2359 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
Key features
- Wide 4V to 30V Operating Input Range
- 1.2A Continuous Output Current
- 1.4MHz Switching Frequency
- Short Protection with Hiccup Mode
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- Force-PWM Mode
- Internal Soft-Start
- 200mΩ/150mΩ Low RDS(ON) Internal Power-MOSFETs
- Output Adjustable from 0.8V
- No Schottky Diode Required
- Integrated internal compensation
- Thermal Shutdown
- Available in SOT23-6 Package
- -40℃ to +85℃ Temperature Range
