TECH PUBLICDatasheet (PDF)

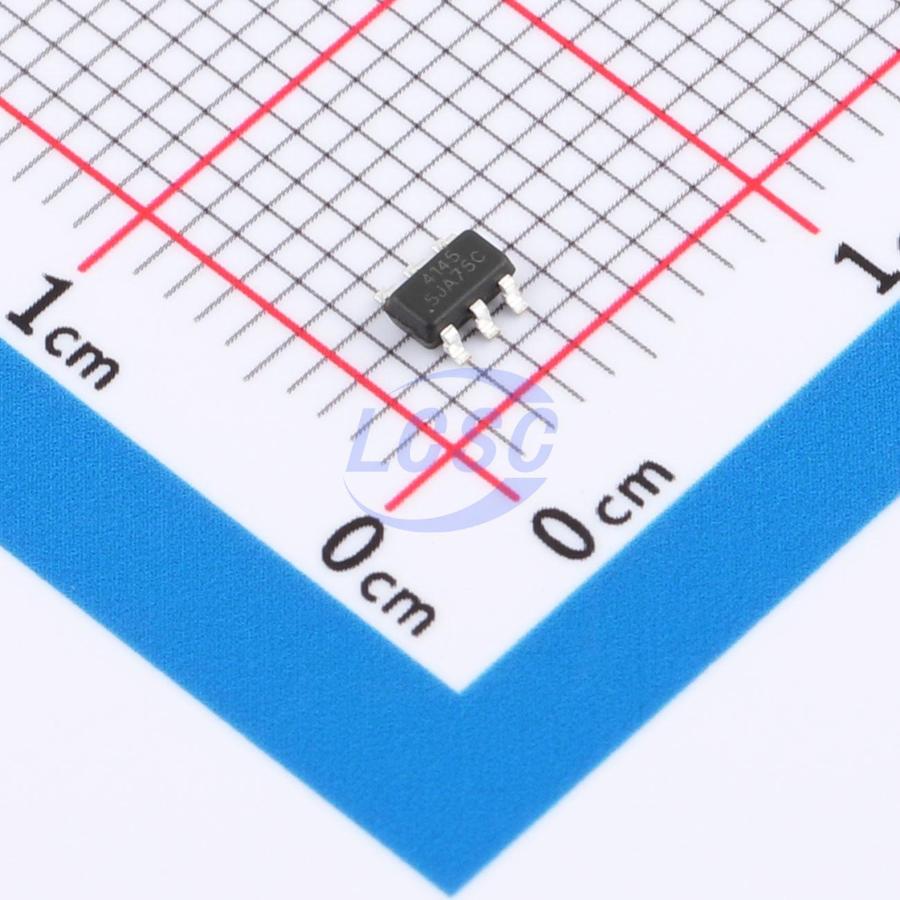

TPMP2459GJ-Z
Step-down type 1MHz~1.4MHz Adjustable 1A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMP2459GJ-Z
- Store part #
- C52205270
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
625 in stock
#C52205270
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.27 | ₹236.35 |
| 50+ | ₹37.06 | ₹1,853.00 |
| 150+ | ₹32.68 | ₹4,902.00 |
| 500+ | ₹27.21 | ₹13,605.00 |
| 3,000+ | ₹24.78 | ₹74,340.00 |
| 6,000+ | ₹23.32 | ₹1,39,920.00 |
5 × ₹47.27
₹236.35
excl. GST
₹278.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMP2459GJ-Z
₹236.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Function
- Step-down type
- Number of Outputs
- 1
- Frequency - Switching
- 1MHz~1.4MHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 5V~55V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This is a step-down DC/DC regulator with integrated switches, featuring a SKIP control mode that combines low quiescent current with high switching frequency to achieve high efficiency across a wide load current range. In SKIP mode, the internal power MOSFETs switch the inductor current in short "burst" cycles, followed by a sleep period during which the power switches are off and the load current is supplied by the output capacitor. Under light-load conditions, the burst cycle occupies only a small fraction of the total cycle time, minimizing average supply current and significantly improving light-load efficiency.
Applications
- IP cameras
- LCD TVs
- Smart home applications
- Telecom and data communication systems
- Power over Ethernet applications
Key features
- Wide input voltage range: 4.5V~55V
- Up to 1A output current
- 1.2MHz switching frequency
- Typical shutdown current as low as 4μA
- Stable operation with low ESR ceramic output capacitors
- SKIP mode for ultra-high light-load efficiency
- 0.812V voltage reference
- Integrated 600mΩ high-side MOSFET
- Cycle-by-cycle current limit protection
- Peak current mode with internal compensation
- Thermal shutdown protection
- Compact SOT23-6 package
