TECH PUBLICDatasheet (PDF)

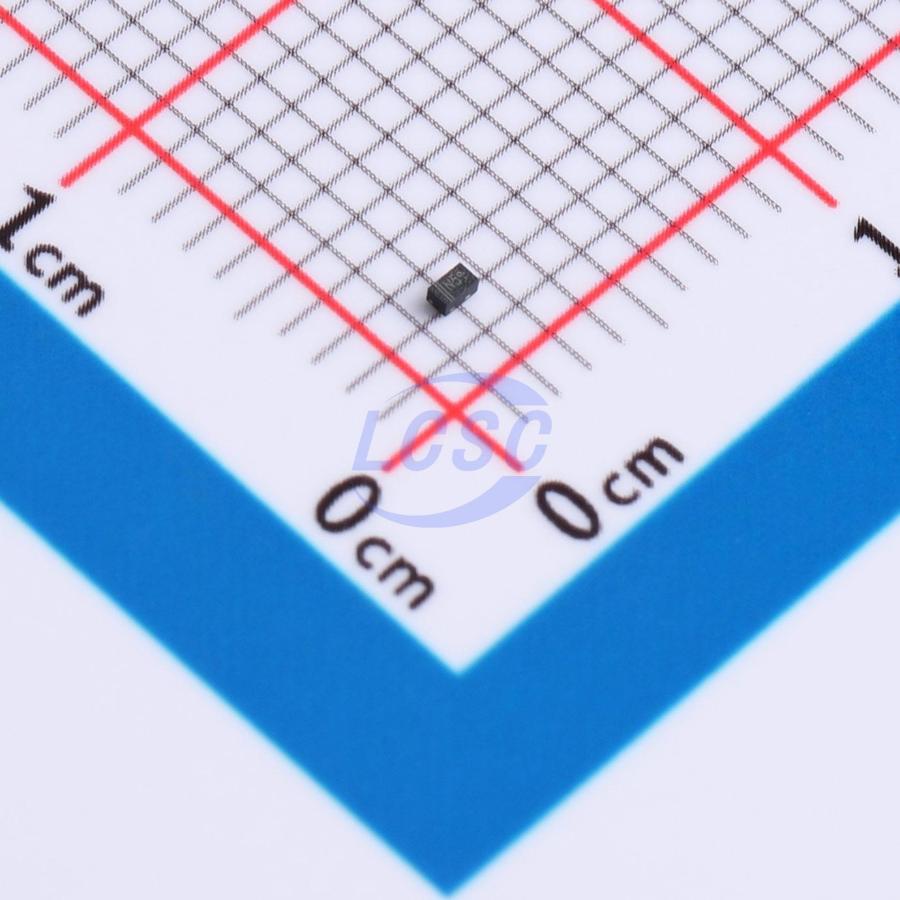

TPMZ600UNEZ
350mW 20V 900mA 250mΩ@4.5V 1 N-channel N-Channel DFN1006-3L Single FETs, MOSFETs
DFN1006-3LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMZ600UNEZ
- Store part #
- C52817279
- Package / case
- DFN1006-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,100 in stock
#C52817279
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.25 | ₹85.00 |
| 200+ | ₹3.28 | ₹656.00 |
| 600+ | ₹2.75 | ₹1,650.00 |
| 3,000+ | ₹2.43 | ₹7,290.00 |
| 9,000+ | ₹2.16 | ₹19,440.00 |
| 21,000+ | ₹2.01 | ₹42,210.00 |
20 × ₹4.25
₹85.00
excl. GST
₹100.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMZ600UNEZ
₹85.00 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 9pF
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 350mW
- Drain to Source Voltage
- 20V
- Configuration
- Standalone
- Current - Continuous Drain(Id)
- 900mA
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 250mΩ@4.5V
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.006 g
Overview
Applications
- Load/power switch
- Interface switch
- Battery management for ultra-compact portable electronics
- Logic level translation
Key features
- Drain-Source Voltage (VDS) = 20V
- On-Resistance (RDS(ON)) = 300mΩ (typ.) at Gate-Source Voltage (VGS) = 2.5V
- On-Resistance (RDS(ON)) = 250mΩ (typ.) at Gate-Source Voltage (VGS) = 4.5V
- ESD protection up to 2KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMZB600UNELYL#C52817168TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 1,960 | ₹4.15 · 1,960 in stock | View |
 | DMN2500UFB4-TP#C55042586TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 500 | ₹4.55 · 500 in stock | View |
 | DMN2600UFB-TP#C55042587TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 460 | ₹4.55 · 460 in stock | View |
 | DMP22D5UFB4-TP#C55042589TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 10,000 | ₹4.55 · 10,000 in stock | View |
 | TPMZB300XN#C55042730TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 500 | ₹4.55 · 500 in stock | View |
