TECH PUBLIC

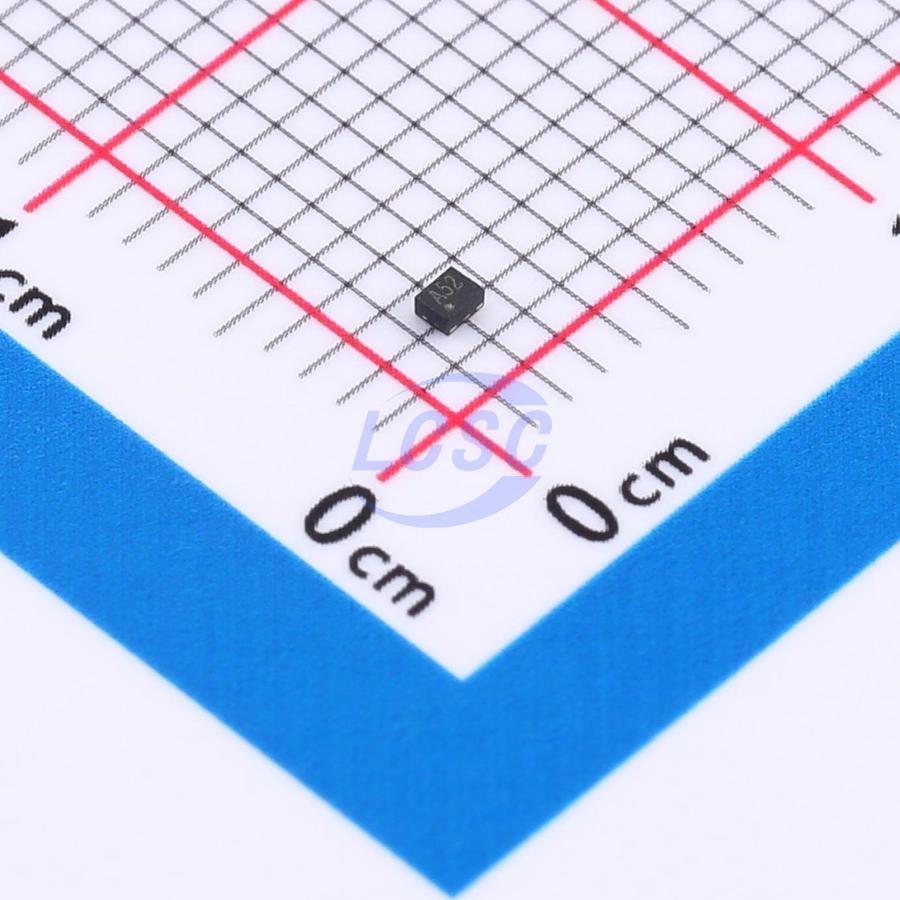

TPNLAS3257CMX2TCG

1.5Ω 1.5V~5.5V DFN-6(0.9x1.1) Analog Switches, Multiplexers, Demultiplexers

DFN-6(0.9x1.1)RoHSActive

SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: TPNLAS3257CMX2TCG
Store part #: C42437007
Package / case: DFN-6(0.9x1.1)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,630 in stock

#C42437007

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.48	₹62.40
50+	₹10.95	₹547.50
150+	₹10.20	₹1,530.00
500+	₹9.63	₹4,815.00
2,500+	₹9.17	₹22,925.00
5,000+	₹8.94	₹44,700.00

Quantity (min 5, multiples of 5)

5 × ₹12.48

₹62.40

excl. GST

₹73.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

TPNLAS3257CMX2TCG

₹62.40 for 5 + GST

Specifications

Features: Power-off isolation;Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Ron: 1.5Ω
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.019 g

Overview

The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 1.5Ω when A = 5V
1.8V Logic Compatible Control Pin A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2uA)
With Very Wide Supply Range (1.5V ~ 5.5V)
