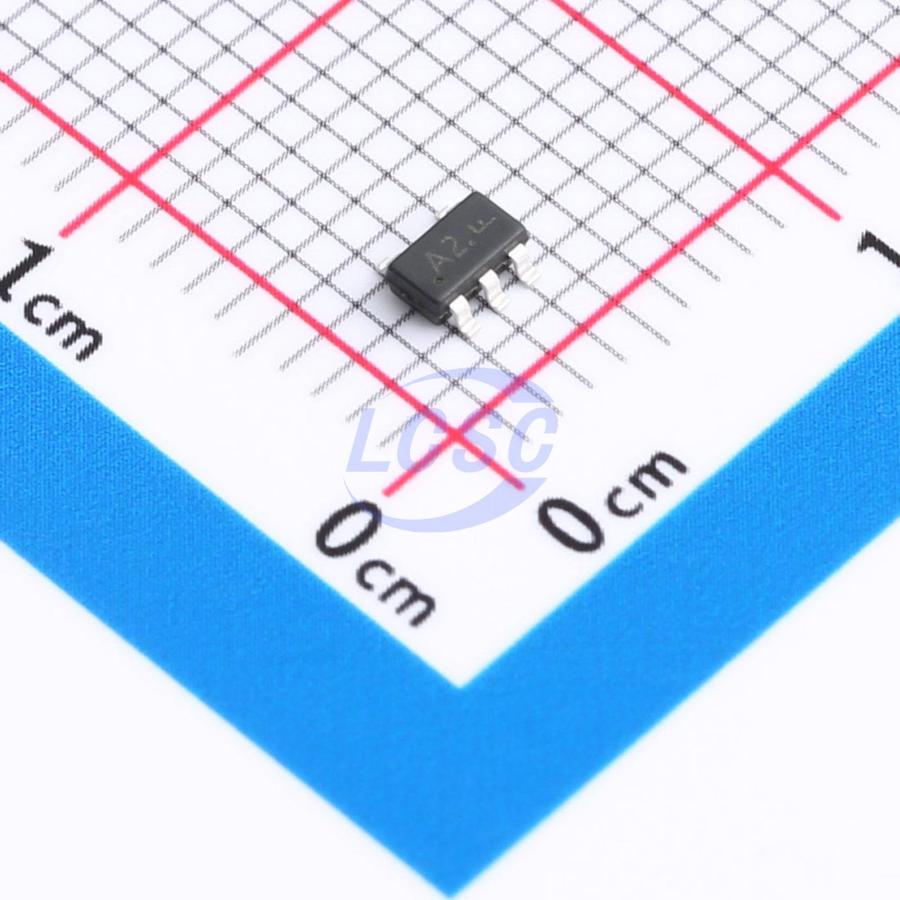

TECH PUBLIC

TPNLAS4501DTT1G

1 8.5Ω 1.6V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

Single-Supply SPST Analog Switches

Manufacturer: TECH PUBLIC
Manufacturer part #: TPNLAS4501DTT1G
Store part #: C46472240
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,820 in stock

#C46472240

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.53	₹77.65
50+	₹13.57	₹678.50
150+	₹12.73	₹1,909.50
500+	₹11.67	₹5,835.00
3,000+	₹11.21	₹33,630.00
6,000+	₹10.93	₹65,580.00

Quantity (min 5, multiples of 5)

5 × ₹15.53

₹77.65

excl. GST

₹91.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPNLAS4501DTT1G

₹77.65 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 8.5Ω
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The is a low voltage single-pole,double-throw (SPDT) analog switch intending for use in chopping,modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Key features

Low On-resistance, Ron=20Q
1.8V Logic Compatible Control Pin Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @700MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (<2uA)
With Very Wide Supply Range (1.5V~5.5V)
