TECH PUBLICDatasheet (PDF)
TPNUP1301U

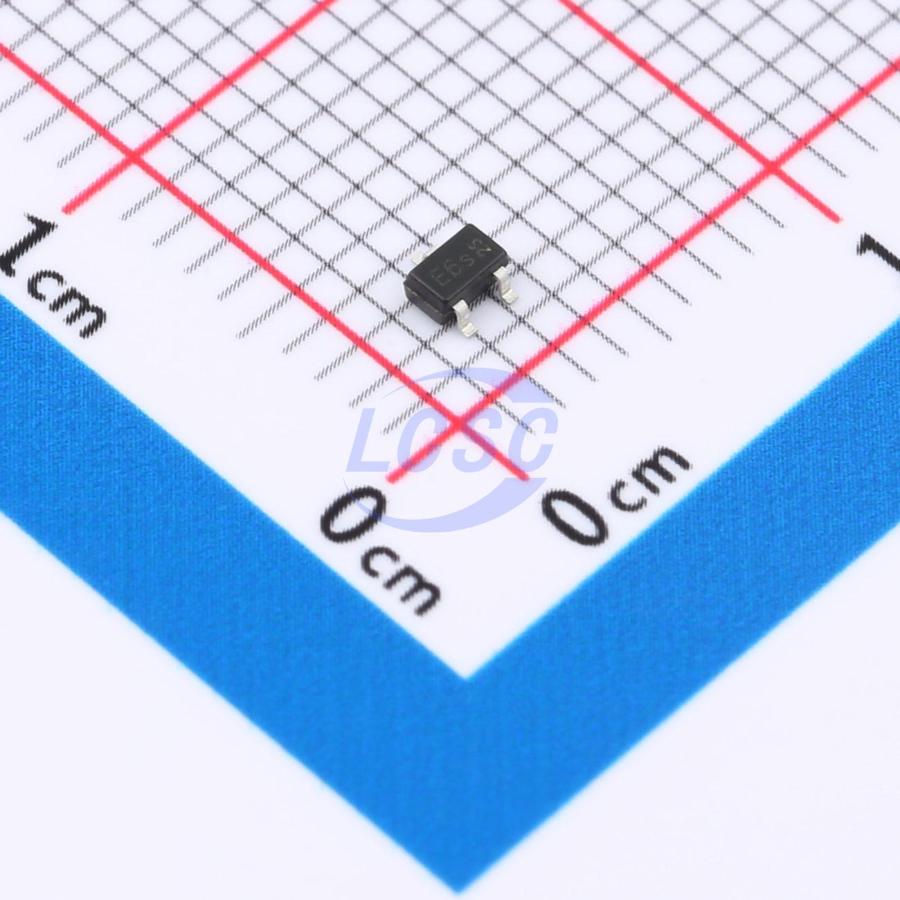

22VC Clamp 22A@8/20us Ipp SOT-323
SOT-323ROHS CompliantActive
80VWM 22VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNUP1301U
- Store part #
- C49230936
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,715 in stock
#C49230936
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.43 | ₹72.15 |
| 50+ | ₹11.56 | ₹578.00 |
| 150+ | ₹10.13 | ₹1,519.50 |
| 500+ | ₹9.06 | ₹4,530.00 |
| 3,000+ | ₹8.20 | ₹24,600.00 |
| 6,000+ | ₹7.77 | ₹46,620.00 |
5 × ₹14.43
₹72.15
excl. GST
₹85.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNUP1301U
₹72.15 for 5 + GST
Specifications
- Clamping Voltage
- 22V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 22A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 240W@8/20us
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 80V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Applications
- Analog audio
- Antenna power supply
- I²C bus protection
- Video line protection
- Telecom networks
Key features
- Working voltage: 80V
- Peak pulse power (8/20μs): 240W
- Ultra-low leakage current: nA level
- Low clamping voltage
- Compliant with IEC 61000-4-2 (ESD) immunity test standard: air discharge ±25kV, contact discharge ±20kV
- Compliant with IEC 61000-4-4 (EFT) standard: 40A (5/50ns)
- 3-pin leadless package
- Compliant with lead-free device standard
- Typical response time <1 ns
