TECH PUBLICDatasheet (PDF)

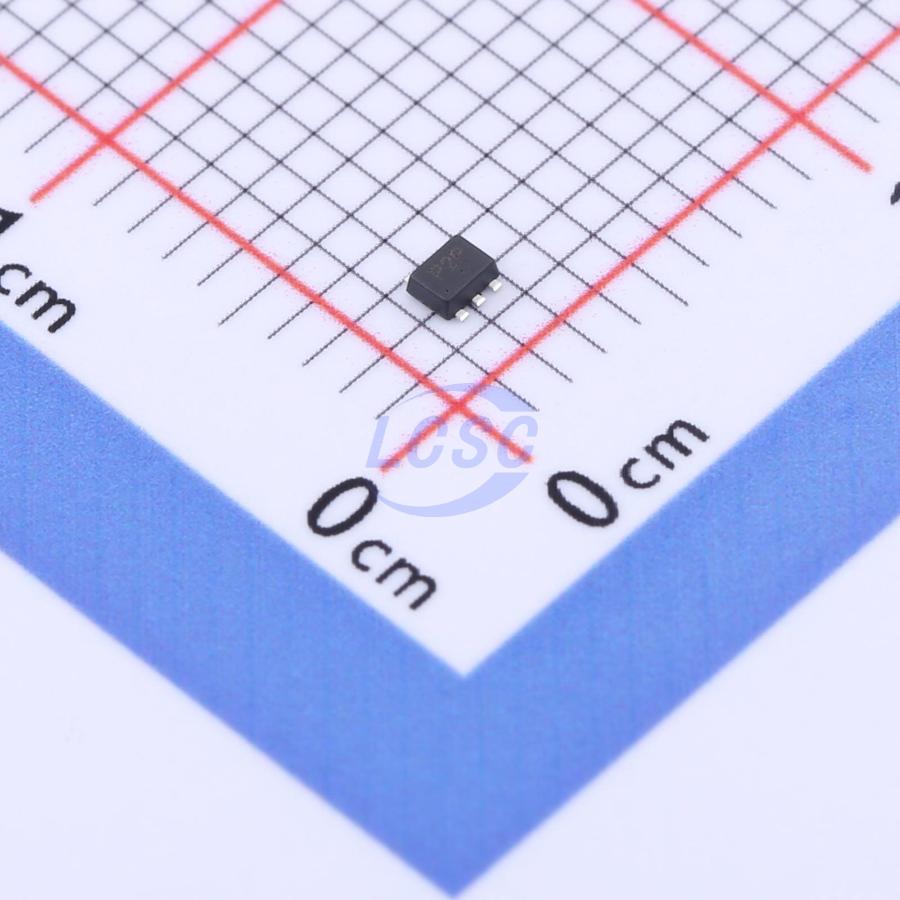

TPNUP2114UPXV5T1G
16VC Clamp 5A@8/20us Ipp SOT-553
SOT-553RoHSActive
5VWM 16VC SOT-553
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNUP2114UPXV5T1G
- Store part #
- C2987146
- Package / case
- SOT-553
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,555 in stock
#C2987146
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.31 | ₹106.55 |
| 50+ | ₹18.80 | ₹940.00 |
| 150+ | ₹17.73 | ₹2,659.50 |
| 500+ | ₹16.38 | ₹8,190.00 |
| 2,500+ | ₹13.83 | ₹34,575.00 |
| 4,000+ | ₹13.47 | ₹53,880.00 |
5 × ₹21.31
₹106.55
excl. GST
₹125.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPNUP2114UPXV5T1G
₹106.55 for 5 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
Applications
- USB 2.0 and USB OTG
- Multi Media Card (MMC) Interfaces
- SD Card Interfaces
- MDDI Ports
- SIM Ports
- KeyPads
Key features
- Ultra low capacitance: 0.35pF(IO to 10)
- Ultralow leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Protects one power line and four data lines
- Flow-through package
- Complies with following standards: IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV; IEC 61000 - 4 - 4 (EFT) 40A (5/50ns); IEC 61000 - 4 - 5 (Lightning) 5A (8/20 μs)
- RoHS Compliant
