TECH PUBLICDatasheet (PDF)

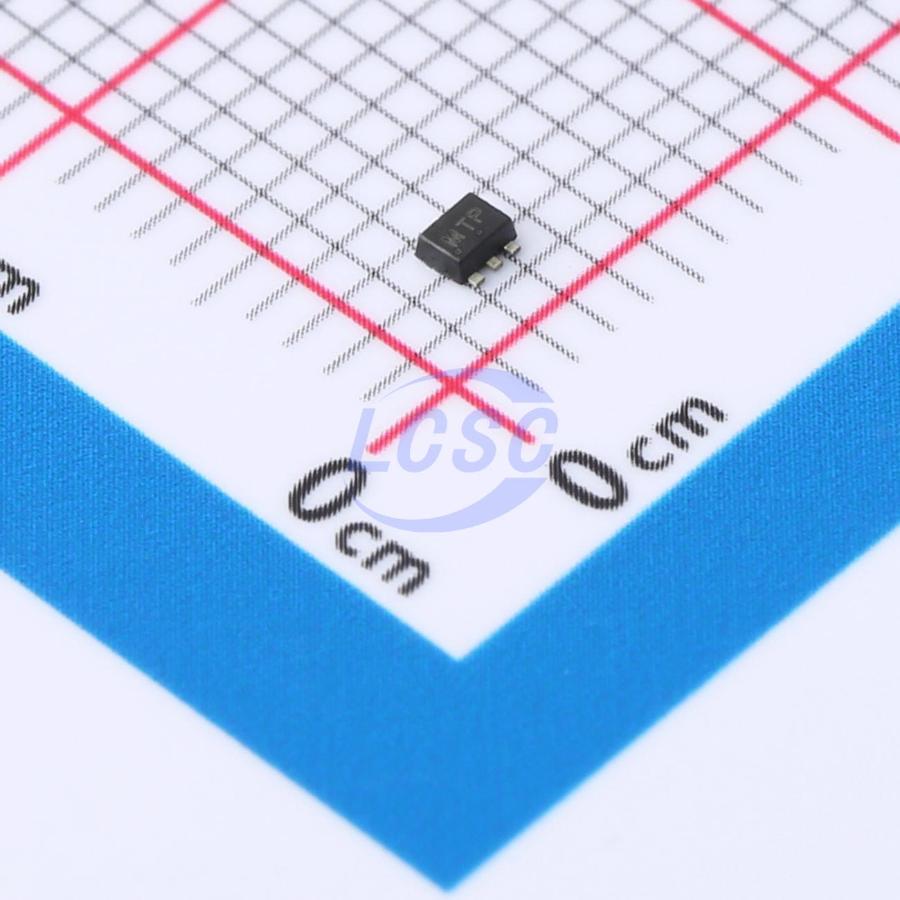

TPNUP4060AXV6T1G
6.8V Bidirectional 5V SOT-563 TVS Diodes
SOT-563RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNUP4060AXV6T1G
- Store part #
- C7202976
- Package / case
- SOT-563
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C7202976
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.77 | ₹163.85 |
| 50+ | ₹26.18 | ₹1,309.00 |
| 150+ | ₹23.36 | ₹3,504.00 |
| 500+ | ₹19.85 | ₹9,925.00 |
| 2,500+ | ₹17.15 | ₹42,875.00 |
| 4,000+ | ₹16.21 | ₹64,840.00 |
5 × ₹32.77
₹163.85
excl. GST
₹193.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPNUP4060AXV6T1G
₹163.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+125℃
- Number of Channels
- Three channels
- Voltage - Breakdown
- 6.8V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- Hand Held Portable Applications
- USB Interface
- Notebooks, Desktops, Servers
- SIM Card Protection
Key features
- VCC Pin = 16 V Protection
- D1, D2, and D3 Pins = 6.8 V Protection
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±15 kV Contact discharge: ±8 kV
- RoHS Compliant
- Lead Finish: NiPdAu
