TECH PUBLICDatasheet (PDF)

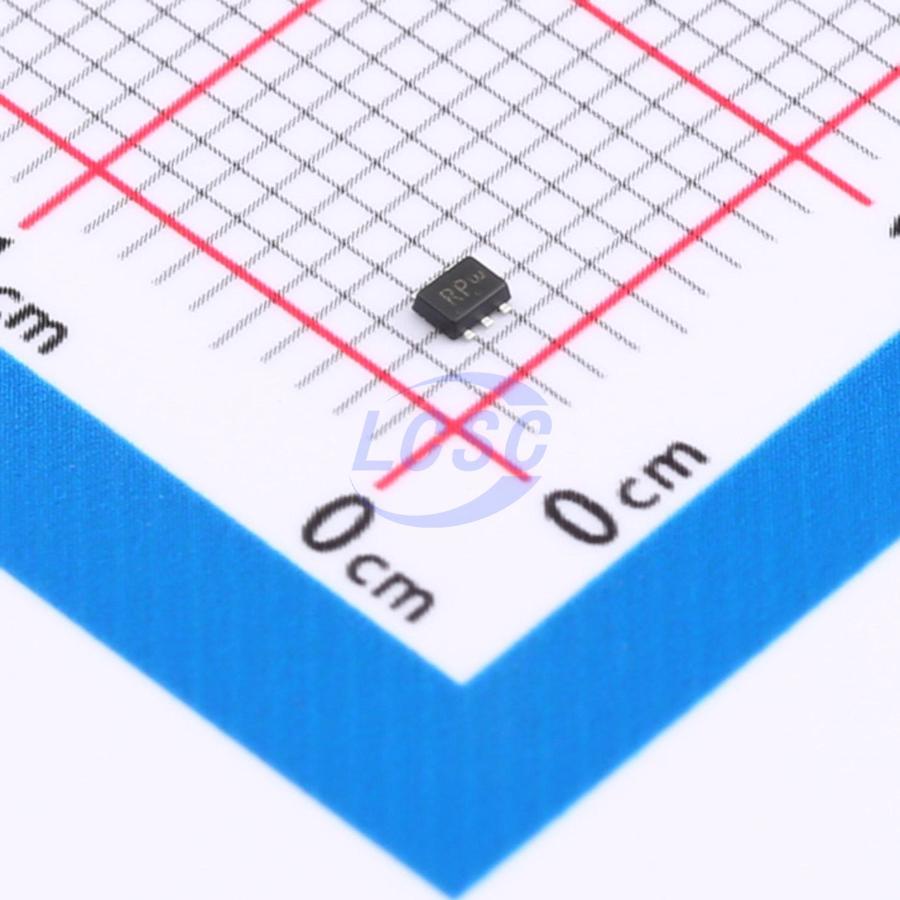

TPNUP4102XV6T1G
25VC Clamp 3A@8/20us Ipp SOT563
SOT563RoHSActive
12VWM 25VC SOT563
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNUP4102XV6T1G
- Store part #
- C7202969
- Package / case
- SOT563
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,465 in stock
#C7202969
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.76 | ₹73.80 |
| 50+ | ₹12.86 | ₹643.00 |
| 150+ | ₹12.04 | ₹1,806.00 |
| 500+ | ₹11.01 | ₹5,505.00 |
| 2,500+ | ₹10.56 | ₹26,400.00 |
| 4,000+ | ₹10.28 | ₹41,120.00 |
5 × ₹14.76
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPNUP4102XV6T1G
₹73.80 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 75W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 13.3V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Applications
- GSM Handsets and Accessories
- Other Telephone Sets
- Computers / Printers / Set - Top Boxes
Key features
- 75W peak pulse power(8/20μs)
- Ultra low leakage: nA level
- Operating voltage: 12V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 3A (8/20μs)
- RoHS Compliant
