TECH PUBLICDatasheet (PDF)

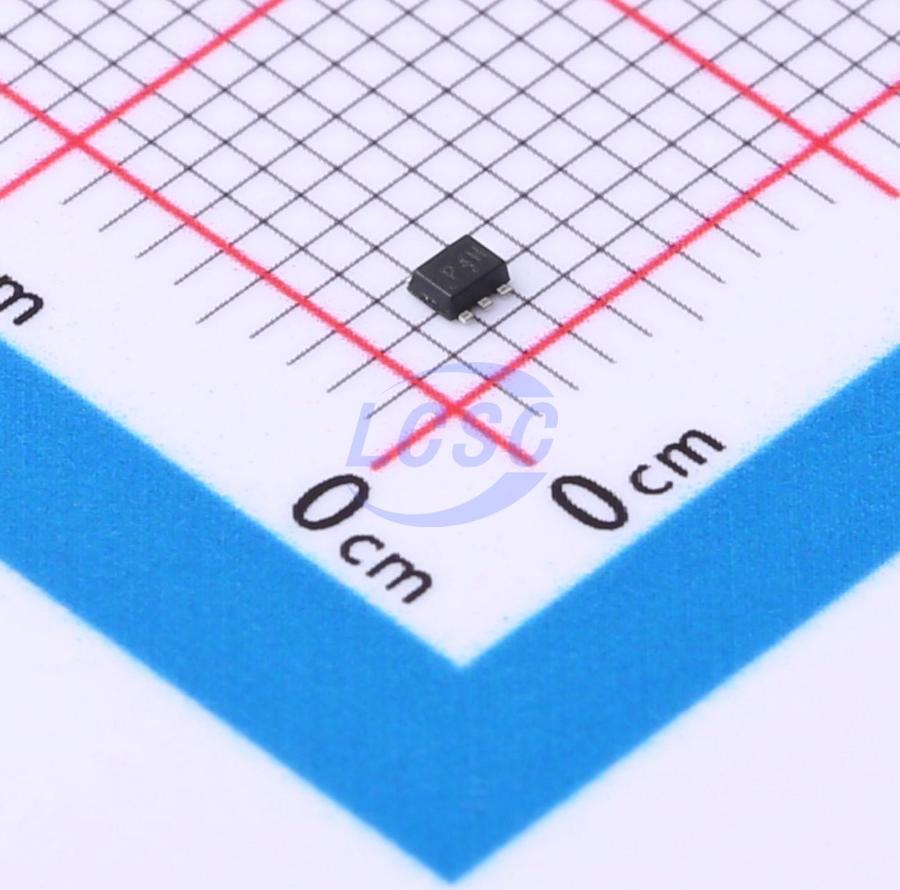

TPNUP4114UPXV6T1G
18V 4A@8/20us 120W@8/20us 6V Unidirectional 5V SOT-563 TVS Diodes
SOT-563RoHSActive
Low Capacitance TVS Diod
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNUP4114UPXV6T1G
- Store part #
- C2901318
- Package / case
- SOT-563
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C2901318
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.25 | ₹86.25 |
| 50+ | ₹14.86 | ₹743.00 |
| 150+ | ₹13.84 | ₹2,076.00 |
| 500+ | ₹12.56 | ₹6,280.00 |
| 2,500+ | ₹11.99 | ₹29,975.00 |
| 4,000+ | ₹11.66 | ₹46,640.00 |
5 × ₹17.25
₹86.25
excl. GST
₹101.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPNUP4114UPXV6T1G
₹86.25 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVI)
- Display Port
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
Key features
- Ultralow capacitance: 0.3pF typical (/O to 1/O)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant
