3PEAK

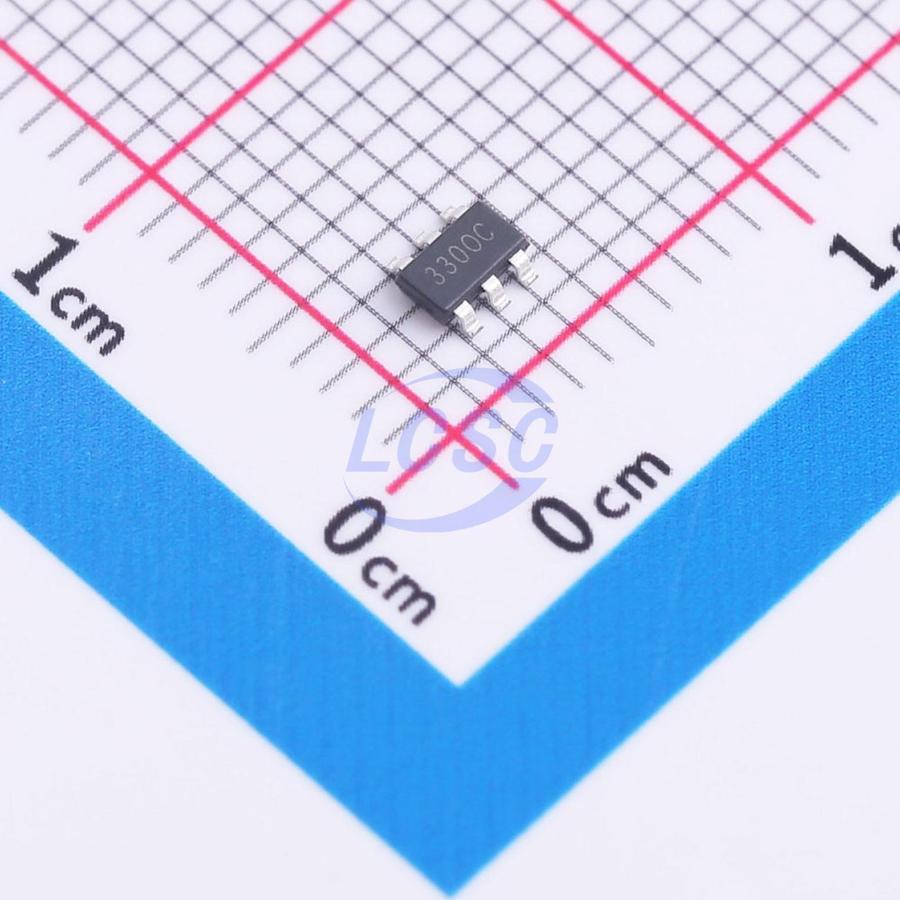

TPP363080-T6TR

Step-down type 400kHz Adjustable 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

TSOT-23-6ROHS3 CompliantActive

36-V Input, 3-A Synchronous Step-Down Voltage Regulator

Manufacturer: 3PEAK
Manufacturer part #: TPP363080-T6TR
Store part #: C18236275
Package / case: TSOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,993 in stock

#C18236275

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
1+	₹74.33	₹74.33
10+	₹58.68	₹586.80
30+	₹52.15	₹1,564.50
100+	₹43.69	₹4,369.00
500+	₹39.99	₹19,995.00
1,000+	₹37.81	₹37,810.00

Quantity (min 1)

1 × ₹74.33

₹74.33

excl. GST

₹87.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPP363080-T6TR

₹74.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Function: Step-down type
Frequency - Switching: 400kHz
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~36V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 90uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.047 g

Overview

The TPP36308x is a simple, easy-to-use, 3-A output, synchronous, step-down, and switch-mode converter with internal power MOSFETs. The TPP36308x integrates low-RDS(ON) power transistors in the TSOT23-6 package with internal soft-start, compensation, and protection features. The TPP36308x offers a very compact solution to achieve a 3-A continuous output current over a wide input supply range, with excellent load and line regulation. The TPP36308x has different versions of switching frequencies at 400 kHz and 1 MHz, and also supports light load PSM to save the quiescent current and forced-PWM mode to maintain fixed switching frequency. The device is available in the 6-pin TSOT23-6 package with the support of a wide operation ambient temperature range from -40 °C to 125 °C.

Applications

12-V, 24-V Distributed Power Supply
Industrial Applications
General Purpose

Key features

Wide Supply Voltage: 4.5 V to 36 V
Internal Power FET: 85 mΩ and 45 mΩ
0.6-V Reference Voltage with 2% Accuracy
High-Efficiency Synchronous-Mode Operation
Fixed Switching Frequency – 400 kHz (TPP363080/2) – 1 MHz (TPP363081/3)
Low 2-μA Shutdown, 90-μA Quiescent Current
Internal Light Load Power-Save Mode for High Efficiency at Light Load (TPP363080/1)
Forced-PWM Mode for Low Output Ripple (TPP363082/3)
Internal 2-ms Soft-start Timer
Internal Loop Compensation
Over-Current Protection with Hiccup Mode
Output Over-Voltage Protection
Thermal Shutdown
Small Outline Package TSOT23-6
-40 °C to 125 °C Operation Ambient Temperature Range
