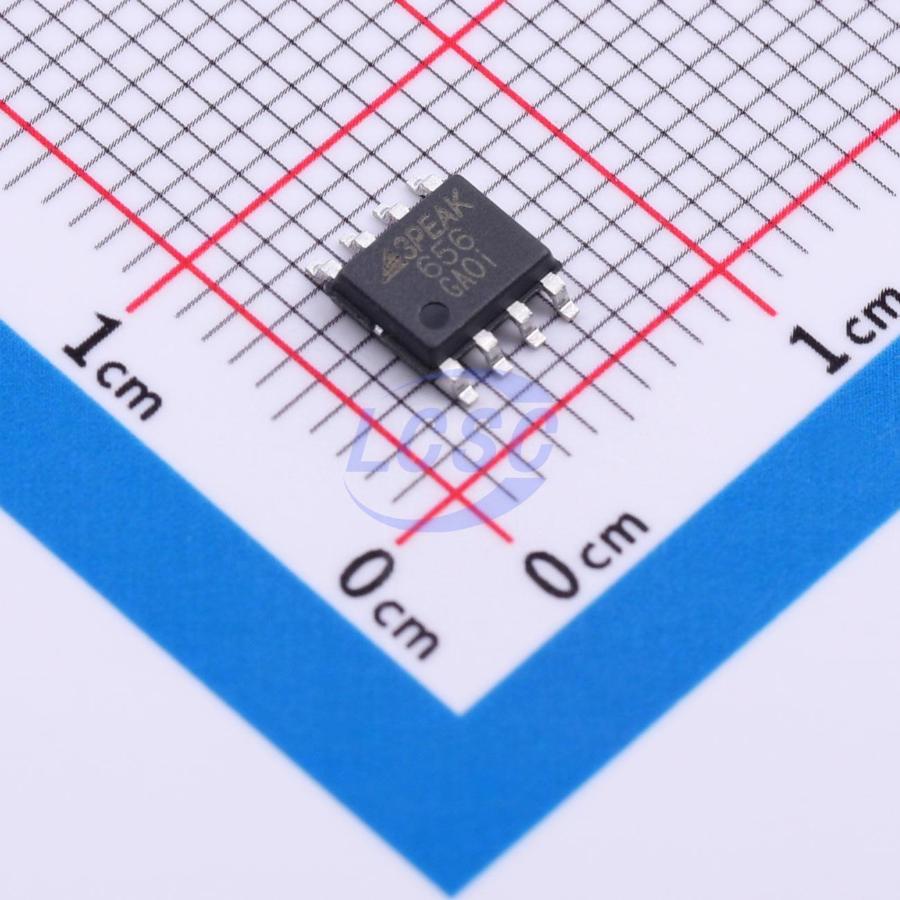

TPP60506-ES1R

TPP60506 is a 60-V, 5-A output non-synchronous buck switch-mode converter with an integrated high-side power MOSFET. The device uses current-mode control, enabling simple external compensation and flexible component selection. It also supports a low quiescent current mode with pulse-skip functionality and ultra-low sleep current. With an integrated PLL, the TPP60506 can synchronize to an external clock source with a wide frequency selection range, allowing optimization for efficiency, physical size, and EMI. Protection and diagnostic features safeguard the device and system power supply. Soft-start controls the output voltage ramp-up. Current limiting, frequency foldback, and over-temperature protection enhance system-level robustness.

Applications

• 12-V, 24-V, 48-V industrial power supply applications
• Telecom and communication equipment power supply applications

Key features

• Pulse skipping for high efficiency at light load
• 80-mΩ high-side MOSFET
• 160-μA operating quiescent current and 1-μA shutdown current
• 100-kHz to 2.5-MHz adjustable switching frequency
• Integrated PLL for external clock synchronization
• Adjustable UVLO voltage and hysteresis
• Soft-start and sequencing control
• 0.8-V 1.5% internal voltage reference
• 8-pin ESOP8 with exposed pad package
• –40°C to 125°C operating ambient temperature range
