TECH PUBLIC

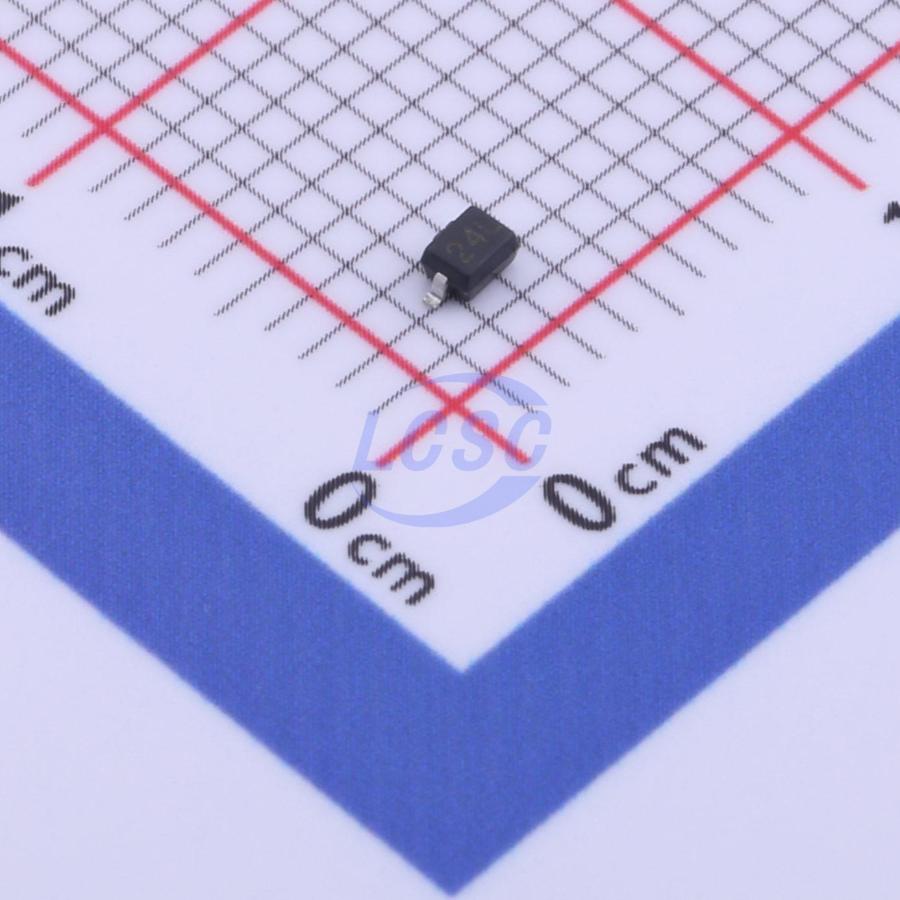

TPPESD24VL1BA

33VC 60VC Clamp 3.5A@8/20us Ipp SOD-323

SOD-323RoHSActive

24VWM 33VC 60VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: TPPESD24VL1BA
Store part #: C2682281
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,360 in stock

#C2682281

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
20+	₹5.99	₹119.80
200+	₹4.82	₹964.00
600+	₹4.15	₹2,490.00
3,000+	₹3.23	₹9,690.00
9,000+	₹2.88	₹25,920.00
21,000+	₹2.71	₹56,910.00

Quantity (min 20, multiples of 20)

20 × ₹5.99

₹119.80

excl. GST

₹141.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPPESD24VL1BA

₹119.80 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 60V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3.5A@8/20us
Peak Pulse Power Dissipation (Ppp): 180W@8/20us
Voltage - Breakdown: 26V
Number of Channels: 1
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 24V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.053 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals
Pagers Peripherals

Key features

180W peak pulse power (8/20μs)
Protects one data or power line
Ultra low leakage: nA level
Operating voltage: 24V
Ultra low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS Compliant
