TECH PUBLICDatasheet (PDF)

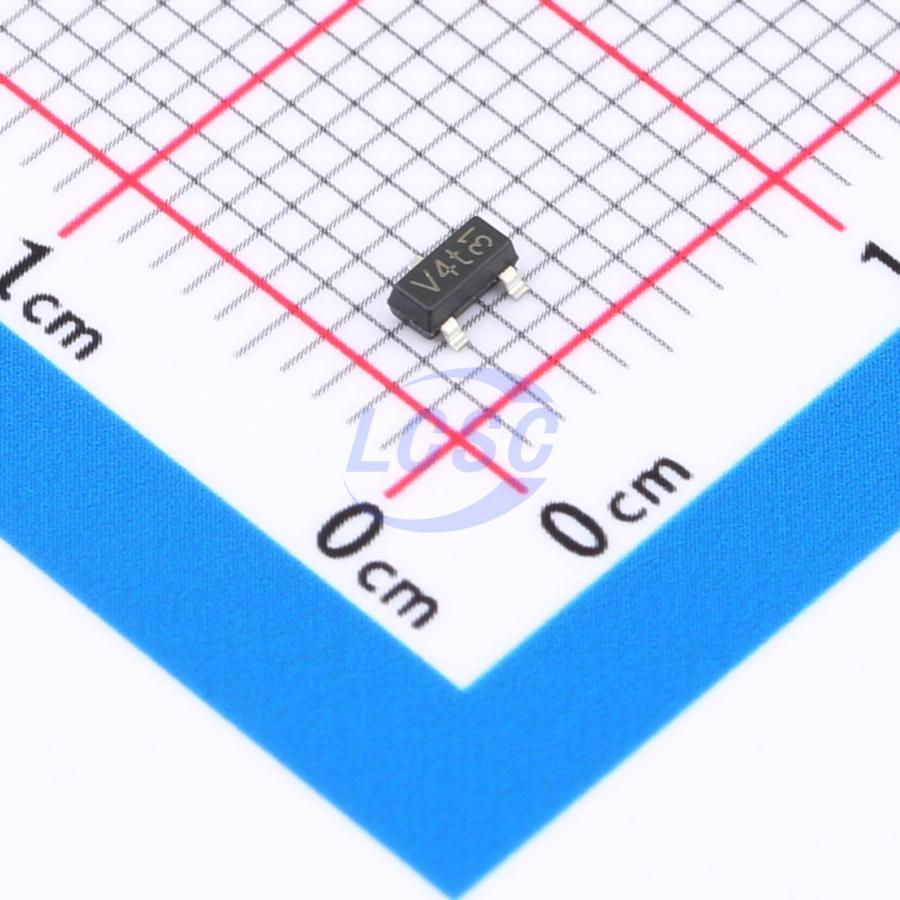

TPPESD5V0L2BT
10VC Clamp ESD DIODE SOT-23-3
SOT-23-3RoHSActive
ESD DIODE 5VWM 10VC SOT-23-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPPESD5V0L2BT
- Store part #
- C587143
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
880 in stock
#C587143
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.40 | ₹64.00 |
| 100+ | ₹5.15 | ₹515.00 |
| 300+ | ₹4.51 | ₹1,353.00 |
| 3,000+ | ₹4.05 | ₹12,150.00 |
| 6,000+ | ₹3.66 | ₹21,960.00 |
| 9,000+ | ₹3.48 | ₹31,320.00 |
10 × ₹6.40
₹64.00
excl. GST
₹75.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPPESD5V0L2BT
₹64.00 for 10 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 9A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 5.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 60nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Mobile phones & accessories
- Laptops & tablet devices
- Portable instruments
- Set-top boxes
- Industrial control
Key features
- Ultra-low leakage current: nA level
- Operating voltage: 5V
- Low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test — Air discharge: ±30kV, Contact discharge: ±30kV
- IEC 61000-4-4 (EFT/Burst) 40A (5/50ns)
- IEC 61000-4-5 (Surge) 9A (8/20μs)
- RoHS compliant
