3PEAKDatasheet (PDF)

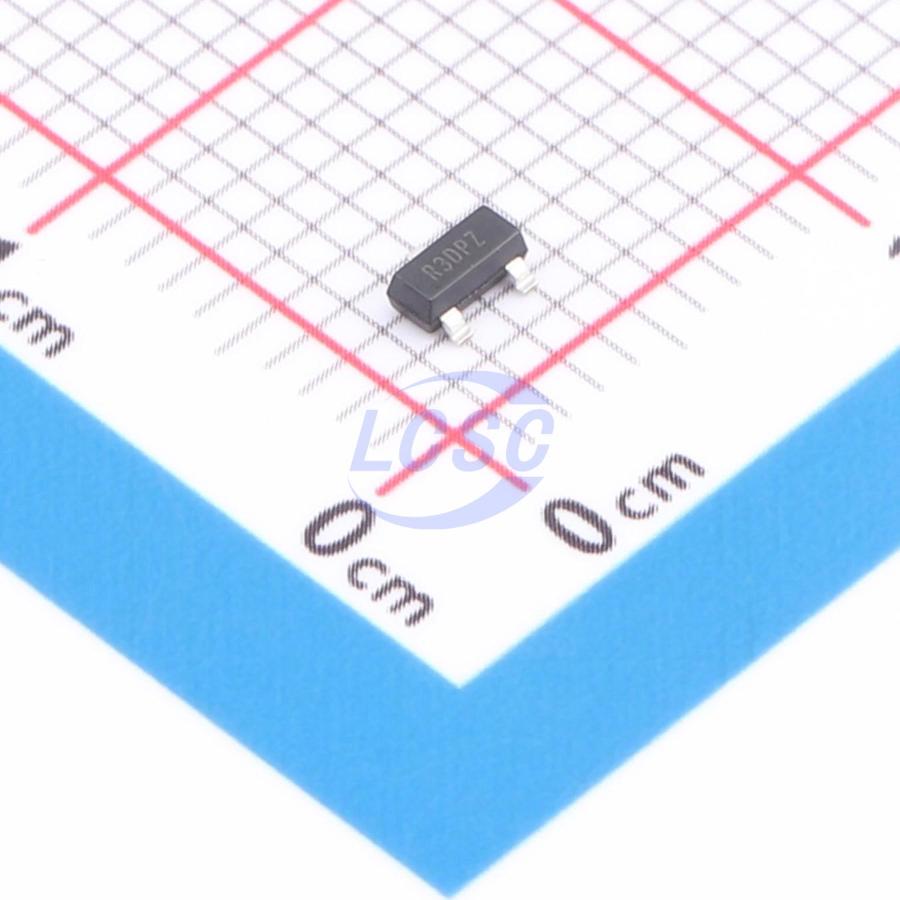

TPR3330-S3TR
3V ±0.15% 2.1V~5.5V Fixed SOT-23G-3 Voltage Reference RoHS
SOT-23G-3ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPR3330-S3TR
- Store part #
- C5174767
- Package / case
- SOT-23G-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,026 in stock
#C5174767
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.90 | ₹116.90 |
| 10+ | ₹94.70 | ₹947.00 |
| 30+ | ₹83.60 | ₹2,508.00 |
| 100+ | ₹72.50 | ₹7,250.00 |
| 500+ | ₹65.75 | ₹32,875.00 |
| 1,000+ | ₹62.49 | ₹62,490.00 |
1 × ₹116.90
₹116.90
excl. GST
₹137.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPR3330-S3TR
₹116.90 for 1 + GST
Specifications
- Output Voltage
- 3V
- Quiescent Current
- 180uA
- Tolerance
- ±0.15%
- Voltage - Supply
- 2.1V~5.5V
- Noise - 1/10Hz to 10Hz
- 60uVp-p
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.257 g
Overview
TPR33 is a voltage reference with guaranteed temperature stability over the full operating temperature range, extended from -40°C to +125°C.
Applications
- Power Supplies
- Instrumentation
- Industrial
Key features
- Fixed output voltages: 1.25 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V
- High initial accuracy and low temperature drift: 0.15% max, 30 ppm/°C (overline)
- Operating temperature range: -40°C to 125°C
- Output noise: 50 μVₚ₋ₚ (TPR3325)
- Quiescent current: 180 μA
- Stable with capacitive loads from 0.1 μF to 10 μF
- Package option: SOT23G-3
