3PEAK

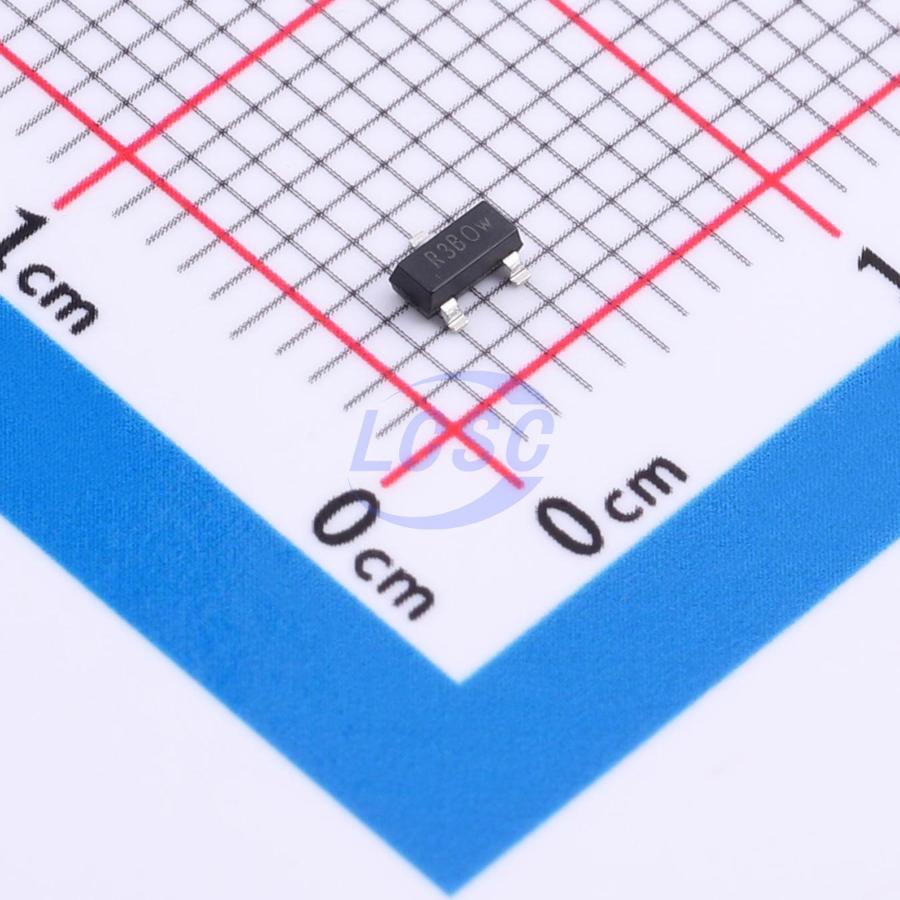

TPR3520-S3TR

2.048V ±0.2% 2.1V~5.5V 20mA Fixed SOT23G-3 Voltage Reference RoHS

SOT23G-3ROHS3 CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TPR3520-S3TR
Store part #: C7503269
Package / case: SOT23G-3
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,232 in stock

#C7503269

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹71.98	₹71.98
10+	₹55.29	₹552.90
30+	₹48.36	₹1,450.80
100+	₹39.47	₹3,947.00
500+	₹35.35	₹17,675.00
1,000+	₹32.96	₹32,960.00

Quantity (min 1)

1 × ₹71.98

₹71.98

excl. GST

₹84.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPR3520-S3TR

₹71.98 for 1 + GST

Specifications

Quiescent Current: 150uA
Output Voltage: 2.048V
Tolerance: ±0.2%
Voltage - Supply: 2.1V~5.5V
Noise - 1/10Hz to 10Hz: 40uVp-p
Output Current: 20mA
Operating Temperature: -40℃~+125℃
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.019 g

Overview

TPR35 is a voltage reference with guaranteed temperature stability over the full operating temperature range. The operating temperature range extends from -40°C to +125°C.

Applications

Power Supplies
Instrumentation
Industrial

Key features

Fixed output voltages: 1.25V, 2.048V, 2.5V, 3V, 3.3V, and 4.096V
High initial accuracy and low temperature coefficient: 0.2% max; 30 ppm/°C from -40°C to 85°C; 50 ppm/°C from -40°C to 125°C
Operating temperature range: -40°C to 125°C
Low output noise: 50 μVpp for TPR3525
Quiescent current: 210 μA
Stable with capacitive loads from 0.1μF to 10μF
