3PEAK

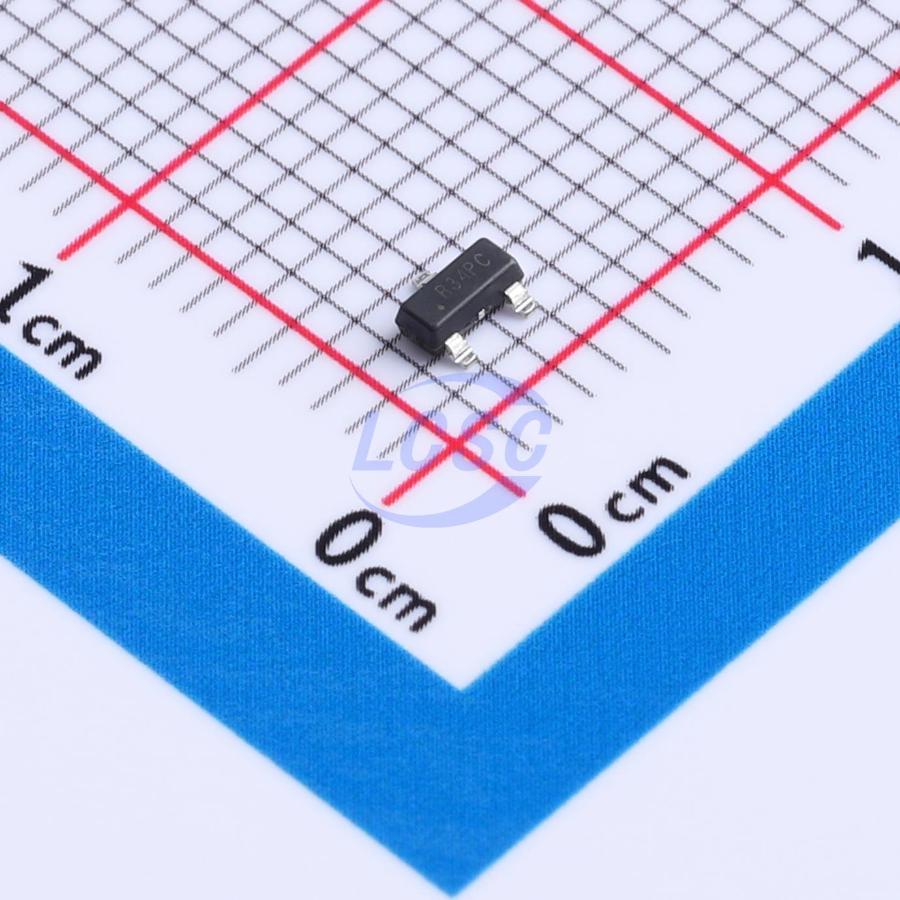

TPR434B-3STR-S

2.495V~36V ±0.5% 80mA Adjustable SOT-23G-3 Voltage Reference RoHS

SOT-23G-3ROHS3 CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TPR434B-3STR-S
Store part #: C38362877
Package / case: SOT-23G-3
Category: Voltage Reference
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,175 in stock

#C38362877

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.48	₹57.40
50+	₹8.88	₹444.00
150+	₹7.58	₹1,137.00
500+	₹6.60	₹3,300.00
3,000+	₹5.82	₹17,460.00
6,000+	₹5.42	₹32,520.00

Quantity (min 5, multiples of 5)

5 × ₹11.48

₹57.40

excl. GST

₹67.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPR434B-3STR-S

₹57.40 for 5 + GST

Specifications

Output Voltage: 2.495V~36V
Tolerance: ±0.5%
Minimum Cathode Current for Regulation: 400uA
Reference Type: Parallel
Output Current: 80mA
Operating Temperature: -40℃~+125℃
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

TPR433 and TPR434 are three-terminal adjustable shunt voltage references. The output voltage of both devices can be set to any value in the range of VREF to 36V via an external feedback resistor network. TPR433 and TPR434 share identical electrical characteristics and package, but differ in pin assignment. The devices offer an output impedance of 0.2Ω and fast turn-on characteristics, making them excellent replacements for conventional Zener diodes in many applications. TPR433 and TPR434 support a wide output current range of 1 to 80mA and are available in the SOT23G-3 package. Both devices are rated for an operating temperature range of -40°C to +125°C.
