3PEAKDatasheet (PDF)

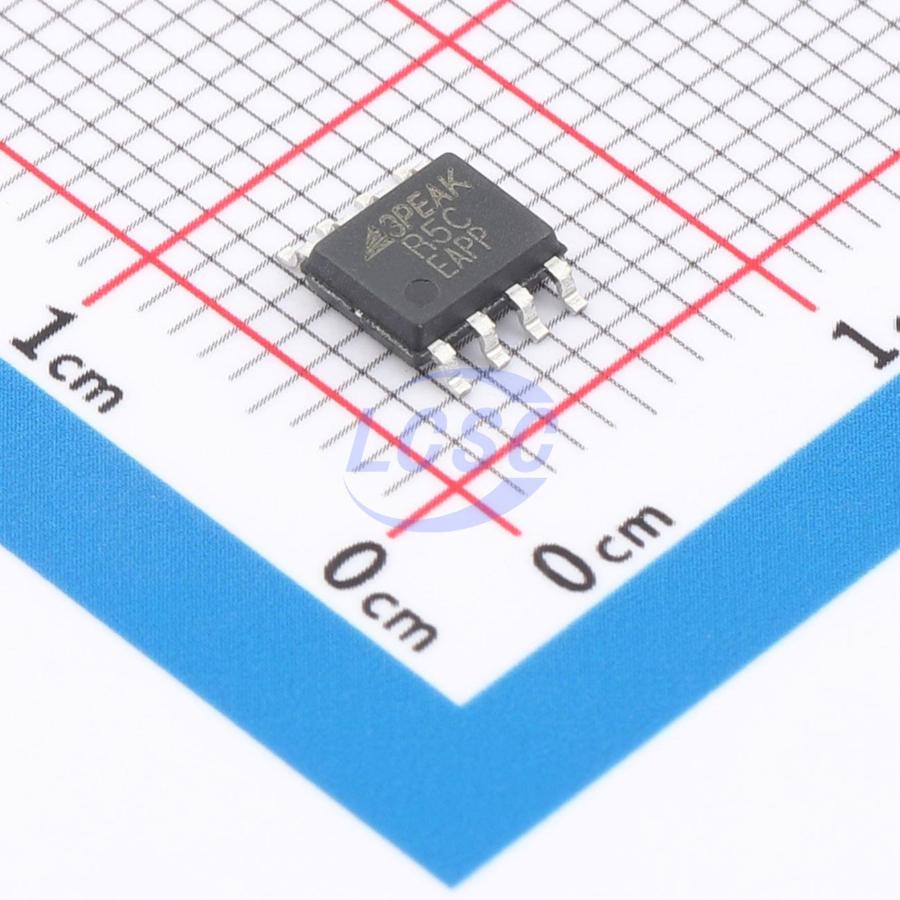

TPR5025-SO1R
2.5V ±0.05% 3V~15V 10mA Fixed SOP-8 Voltage Reference RoHS
SOP-8ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPR5025-SO1R
- Store part #
- C5370678
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,223 in stock
#C5370678
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹429.50 | ₹429.50 |
| 10+ | ₹364.84 | ₹3,648.40 |
| 30+ | ₹324.57 | ₹9,737.10 |
| 100+ | ₹283.21 | ₹28,321.00 |
| 500+ | ₹264.49 | ₹1,32,245.00 |
| 1,000+ | ₹256.44 | ₹2,56,440.00 |
1 × ₹429.50
₹429.50
excl. GST
₹506.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPR5025-SO1R
₹429.50 for 1 + GST
Specifications
- Quiescent Current
- 600uA
- Output Voltage
- 2.5V
- Tolerance
- ±0.05%
- Voltage - Supply
- 3V~15V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
This series of high-precision, low-temperature-drift voltage references features 0.05% initial accuracy and a 2.5 ppm/°C temperature coefficient. All devices support ±10 mA sink and source current with low dropout voltage. Their high accuracy and excellent temperature stability make them ideal references for high-resolution systems. The series is available in 8-pin SOP and MSOP packages with multiple output voltage options. All devices operate over a temperature range of -40°C to +125°C.
Applications
- Battery testing equipment
- Industrial control
- Precision instruments
- Medical equipment
Key features
- Wide input voltage range: 3 V to 15 V
- Fixed output voltages: 1.25 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, 4.5 V, and 5 V
- Low temperature coefficient: 1 ppm/°C typical (0°C to 70°C); 2 ppm/°C typical (-40°C to 105°C); 2.5 ppm/°C typical (-40°C to 125°C)
- High initial accuracy: 0.05% maximum
- Low noise: 3 μVpp/V
- Operating temperature range: -40°C to 125°C
- Package options: SOP8, MSOP8
