3PEAKDatasheet (PDF)

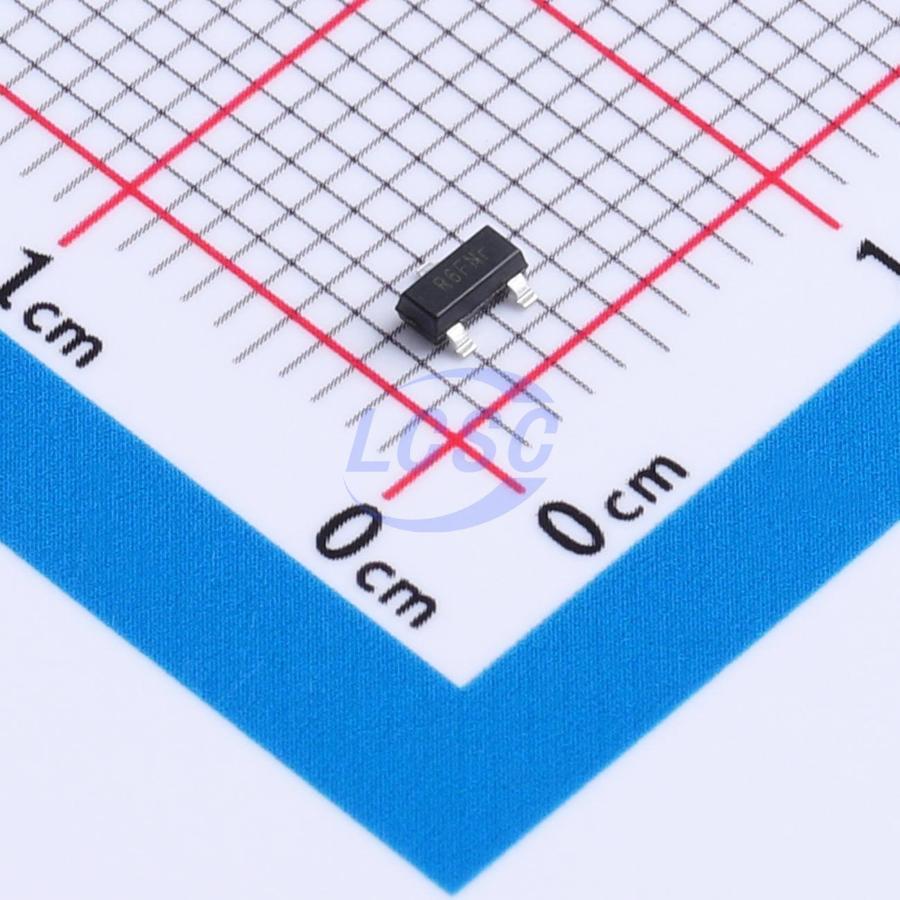

TPR6040F40-S3TR
4.096V ±0.1% 15mA Fixed SOT-23G-3 Voltage Reference RoHS
SOT-23G-3ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPR6040F40-S3TR
- Store part #
- C22401150
- Package / case
- SOT-23G-3
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,213 in stock
#C22401150
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.46 | ₹87.46 |
| 10+ | ₹69.03 | ₹690.30 |
| 30+ | ₹59.81 | ₹1,794.30 |
| 100+ | ₹50.82 | ₹5,082.00 |
| 500+ | ₹45.46 | ₹22,730.00 |
| 1,000+ | ₹42.46 | ₹42,460.00 |
1 × ₹87.46
₹87.46
excl. GST
₹103.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPR6040F40-S3TR
₹87.46 for 1 + GST
Specifications
- Output Voltage
- 4.096V
- Tolerance
- ±0.1%
- Minimum Cathode Current for Regulation
- 100uA
- Reference Type
- Parallel
- Output Current
- 15mA
- Noise - 1/10Hz to 10Hz
- 82uVp-p
- Operating Temperature
- -40℃~+125℃
- Noise - 10Hz to 10kHz
- 148uVrms
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.455 g
Overview
TPR6040-S is a shunt voltage reference with guaranteed temperature stability over the full operating temperature range. The operating temperature range extends from -40°C to +125°C. The device operates over a wide current range of 0.15 to 15 mA with a typical dynamic impedance of 0.3Ω.
Applications
- Power Supplies
- LED Lighting
- Current Sensing
- Instrumentation
- Industrial
Key features
- Fixed output voltages: 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, and 5 V
- High initial accuracy and low tempco: Grade A max 0.1%, 25 ppm/°C; Grade B max 0.2%, 50 ppm/°C
- Operating temperature range: -40°C to 125°C
- Sink current capability: 150 μA to 15 mA
- Stable operation with any capacitive load
- AEC-Q100 qualified for automotive applications
- Package: SOT23G-3
