TECH PUBLICDatasheet (PDF)

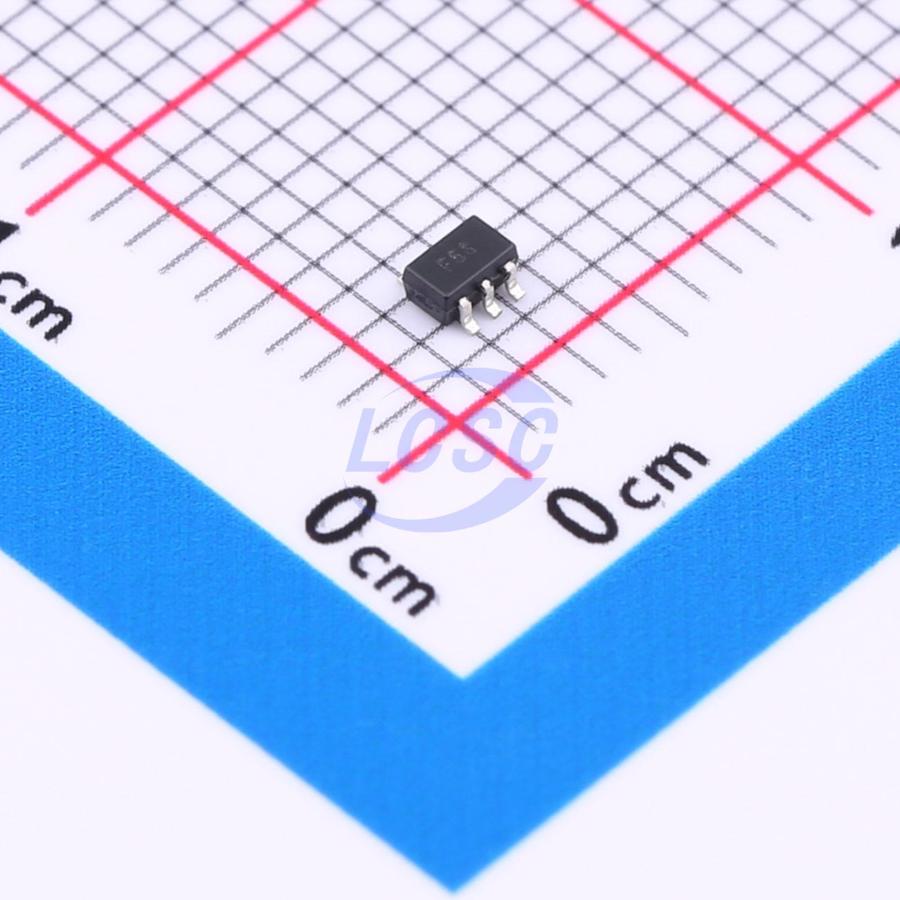

TPRCLAMP0503F
nan
SOT353RoHSActive
5VWM 25VC SOT353
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRCLAMP0503F
- Store part #
- C19829581
- Package / case
- SOT353
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C19829581
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.80 | ₹84.00 |
| 50+ | ₹13.28 | ₹664.00 |
| 150+ | ₹11.52 | ₹1,728.00 |
| 500+ | ₹10.20 | ₹5,100.00 |
| 3,000+ | ₹9.16 | ₹27,480.00 |
| 6,000+ | ₹8.63 | ₹51,780.00 |
5 × ₹16.80
₹84.00
excl. GST
₹99.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRCLAMP0503F
₹84.00 for 5 + GST
Specifications
- Clamping Voltage
- 15V;25V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- Three channels
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
Applications
- USB 2.0 and USB 3.0 Ports
- USB OTG
- Digital video interface (DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC...)
Key features
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC61000-4-2(ESD) immunity test: Air discharge: ±25kV, Contact discharge: ±20kV
- IEC61000-4-5(Lightning): 6A (8/20μs)
- IEC61000-4-4(EFT): 40A (5/50ns)
- ROHS Compliant
