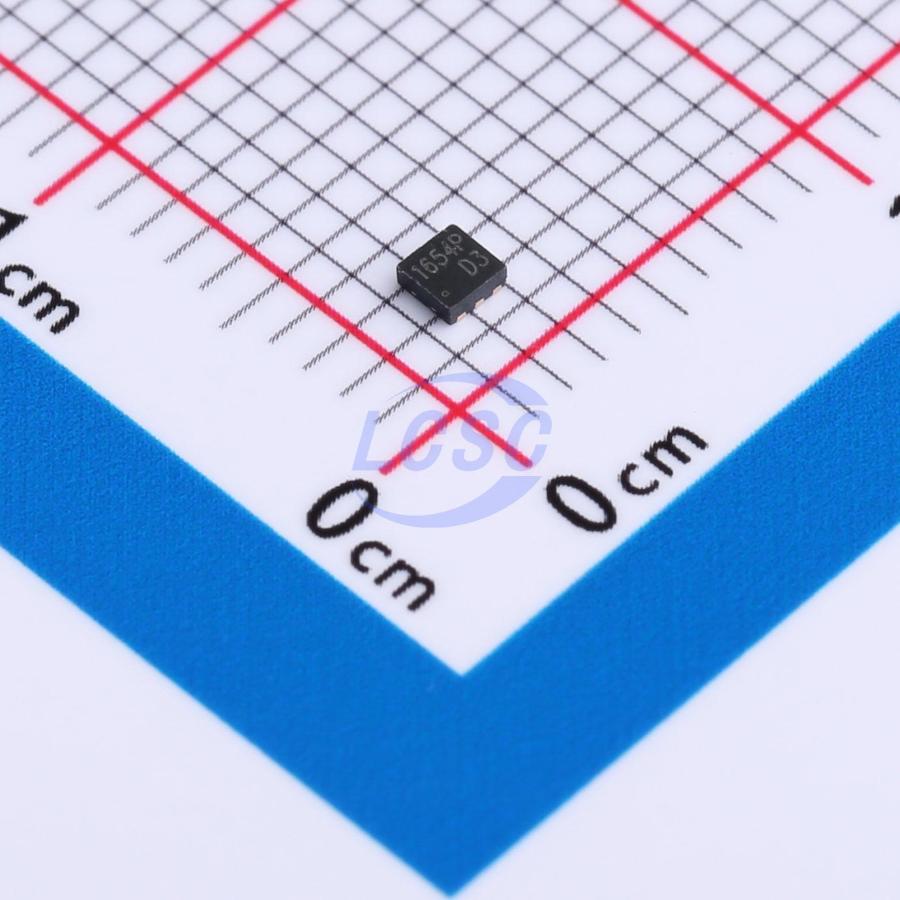

TECH PUBLIC

TPRCLAMP1654P

16VC 30VC Clamp 4.5A@8/20us 7A@8/20us Ipp DFN1616-6

DFN1616-6RoHSActive

5.5VWM 12VWM 16VC 30VC DFN1616-6

Manufacturer: TECH PUBLIC
Manufacturer part #: TPRCLAMP1654P
Store part #: C2987073
Package / case: DFN1616-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,655 in stock

#C2987073

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹15.57	₹77.85
50+	₹15.25	₹762.50
150+	₹15.04	₹2,256.00
500+	₹14.84	₹7,420.00

Quantity (min 5, multiples of 5)

5 × ₹15.57

₹77.85

excl. GST

₹91.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPRCLAMP1654P

₹77.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 16V;30V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 4.5A@8/20us;7A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W@8/20us;150W@8/20us
Voltage - Breakdown: 6.8V;16V
Number of Channels: Three channels
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 5.5V;12V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.09 g

Overview

Applications

USB2.0 and USB OTG
Multi Media Card (MMC) Interfaces
SD Card Interfaces
MDDI Ports
SIM Ports
Key Pads

Key features

Utralowcapacitance: 0.35pF(IO to10)
Ultra lowleakage: nA level
Low operating voltage: 5.5V
Low clamping voltage
Protects one power line and four data lines
Flow-through package
Complies with following standards:
IEC 61000-4-2(ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
IEC61000-4-4(EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 4.5A (8/20 μs)
RoHS Compliant
