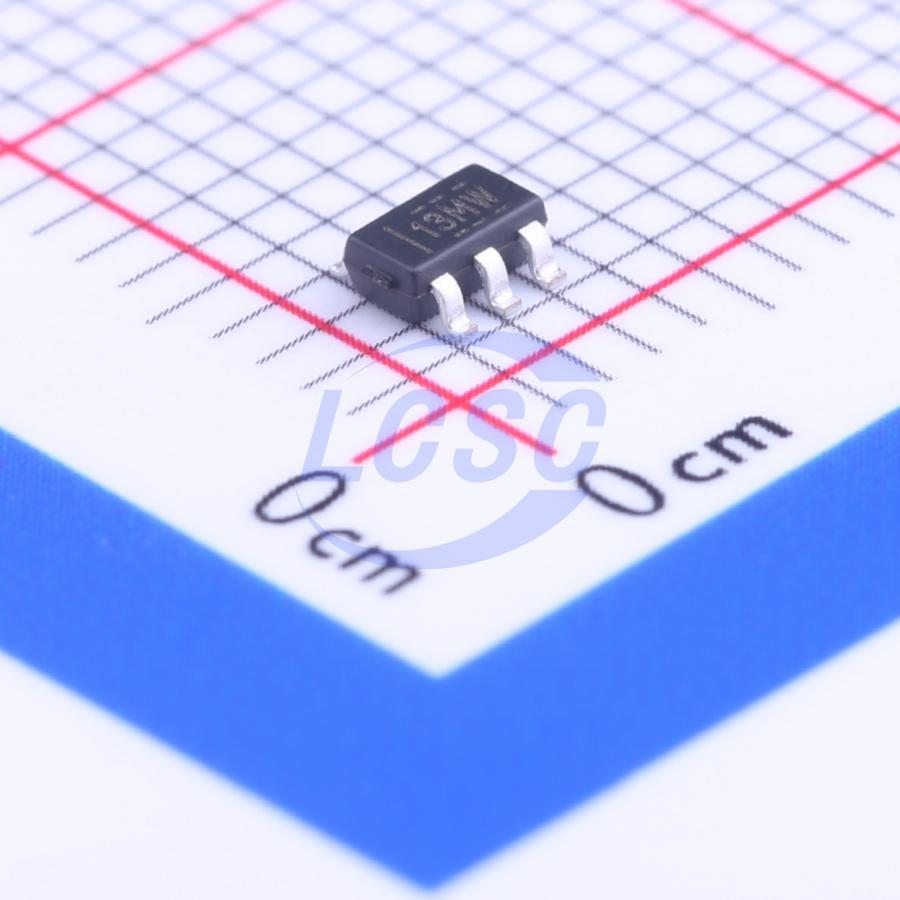

TPS22918DBVR

The TPS22918 is a single-channel load switch with configurable rise time and fast output discharge. This device includes an N-channel metal-oxide-semiconductor field-effect transistor (MOSFET) that can operate within an input voltage range of 1V to 5.5V and support a maximum continuous current of 2A. This switch is controlled by a switch input and can be directly connected to low-voltage control signals. The configurable rise time of the device can significantly reduce the inrush current generated by large-capacity load capacitors, thereby reducing or eliminating the power supply voltage drop. The TPS22918 features a configurable fast output discharge (QOD) pin for controlling the fall time of the device, enabling flexible design for power-down or sequencing. The TPS22918 comes in a small, leaded SOT - 23 package (DBV), facilitating visual inspection of solder joints. The device is rated to operate at a temperature range of - 40°C to + 105°C in a natural ventilation environment.

Applications

• Industrial Systems
• Set-Top Boxes
• Blood Glucose Meters
• Electronic Point-of-Sale Terminals

Key features

• Integrated single-channel load switch
• Ambient operating temperature range: -40°C to +105°C
• Input voltage range: 1V to 5.5V
• On-resistance (R_ON):
• R_ON = 52mΩ (typical at V_IN = 5V)
• R_ON = 53mΩ (typical at V_IN = 3.3V)
• 2A maximum continuous switching current
• Low quiescent current:
• 8.3μA (typical at V_IN = 3.3V)
• Low control input threshold, compatible with 1V or higher GPIO
• Adjustable quick output discharge (QOD)
• Configurable rise time via CT pin
• Small outline transistor (SOT-23)-6 package (DBV):
• 2.90mm × 2.80mm, 0.95mm pitch, 1.45mm height (with leads)
• ESD performance tested per JESD 22: ±2kV Human Body Model (HBM) and ±1kV Charged Device Model (CDM)
