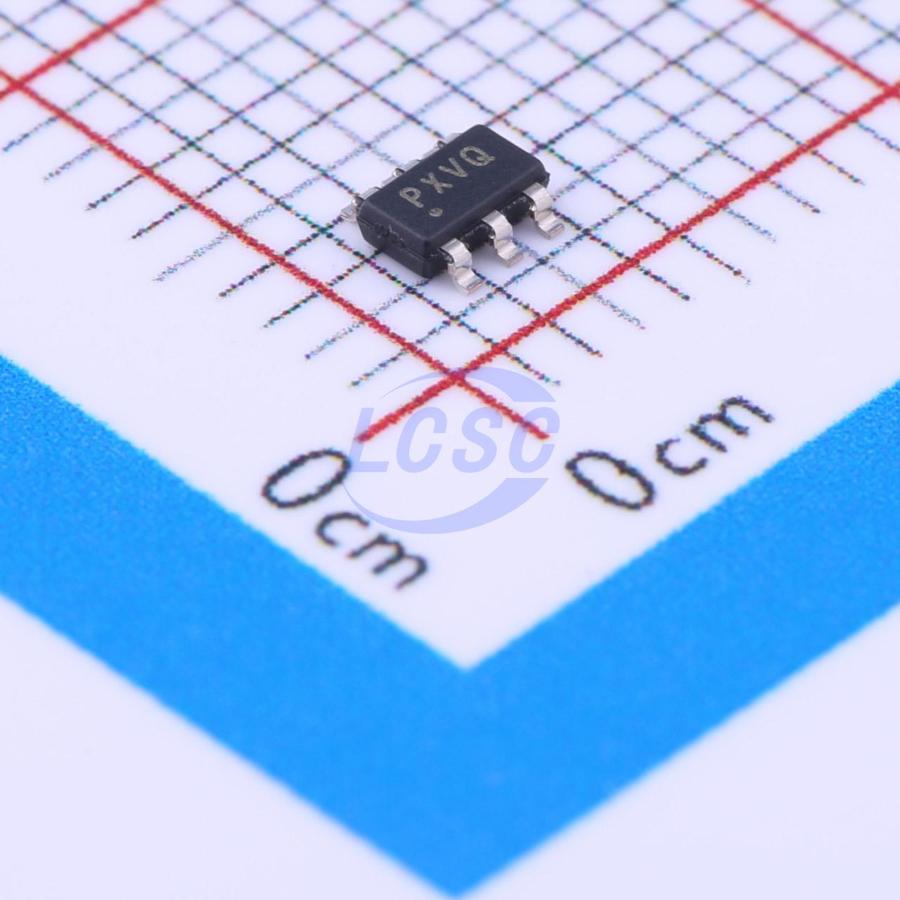

TPS3700DDCR

The TPS3700 wide-supply voltage window comparator operates over a 1.8-V to 18-V range. The device has two high-accuracy comparators with an internal 400-mV reference and two open-drain outputs rated to 18 V for over- and undervoltage detection. The TPS3700 can be used as a window comparator or as two independent voltage monitors; the monitored voltage can be set with the use of external resistors. OUTA is driven low when the voltage at INA+ drops below (VITP - VHYS), and goes high when the voltage returns above the respective threshold (VITP). OUTB is driven low when the voltage at INB– rises above VITP, and goes high when the voltage drops below the respective threshold (VITP - VHYS). Both comparators in the TPS3700 include built-in hysteresis for filtering to reject brief glitches, thereby ensuring stable output operation without false triggering. The TPS3700 is available in a ThinSOT23-6 and a 1.5-mm × 1.5-mm SON-6 package and is specified over the junction temperature range of -40°C to +125°C. The TPS3700 combines two comparators for over- and undervoltage detection. The TPS3700 is a wide-supply voltage range (1.8 V to 18 V) device with a high-accuracy rising input threshold of 400 mV (1% over temperature) and built-in hysteresis. The outputs are also rated to 18 V and can sink up to 40 mA. Each input pin can be set to monitor any voltage above 0.4 V using an external resistor divider network.

Applications

• Industrial Control Systems
• Automotive Systems
• Embedded Computing Modules
• DSP, Microcontroller, or Microprocessor Applications
• Notebook and Desktop Computers
• Portable- and Battery-Powered Products
• FPGA and ASIC Applications

Key features

• Wide Supply Voltage Range: 1.8 V to 18 V
• Adjustable Threshold: Down to 400 mV
• Open-Drain Outputs for Over- and Undervoltage Detection
• Low Quiescent Current: 5.5 μA (typ)
• High Threshold Accuracy: – 1.0% Over Temperature 0.25% (typ)
• Internal Hysteresis: 5.5 mV (typ)
• Temperature Range: -40°C to +125°C
• Packages:
• ThinSOT23-6
• 1.5-mm × 1.5-mm SON-6
