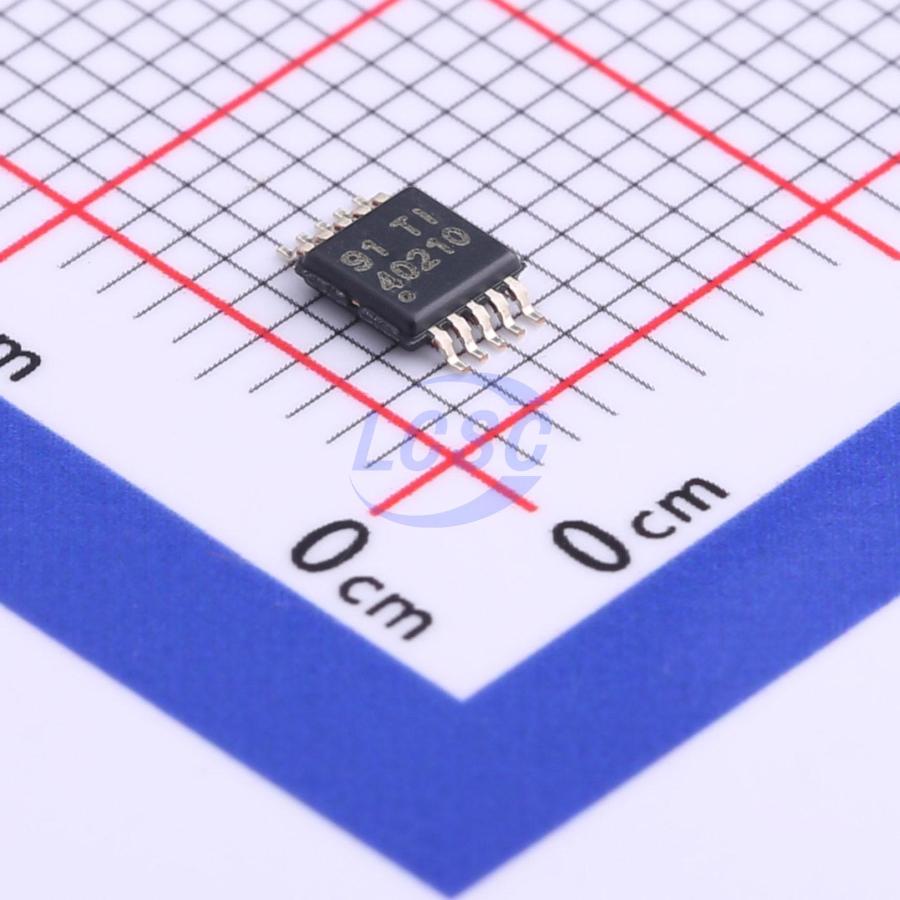

TPS40210DGQR
1 Adjustable HVSSOP-10 DC DC Switching Controllers RoHS
Wide Input Voltage Range Non-Synchronous Boost Controller
- Manufacturer
- TI
- Manufacturer part #
- TPS40210DGQR
- Store part #
- C14728
- Package / case
- HVSSOP-10
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,682 in stock
#C14728
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.04 | ₹162.04 |
| 10+ | ₹132.06 | ₹1,320.60 |
| 30+ | ₹117.07 | ₹3,512.10 |
| 100+ | ₹89.71 | ₹8,971.00 |
| 500+ | ₹80.81 | ₹40,405.00 |
| 1,000+ | ₹76.24 | ₹76,240.00 |
1 × ₹162.04
₹162.04
excl. GST
₹191.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS40210DGQR
₹162.04 for 1 + GST
Specifications
- Synchronous Rectifier
- No
- Features
- Adjustable soft-start;Overcurrent Protection;Frequency synchronization
- Number of Channels
- 1
- Topology
- Boost;Flyback;SEPIC
- Operating Voltage
- 4.5V~52V
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz
- Output Type
- Adjustable
- Function
- Boost;Buck-Boost
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.141 g
Overview
The TPS40210 and TPS40211 are wide-input voltage (4.5 V to 52 V), non-synchronous boost controllers. They are suitable for topologies which require a grounded source N-channel FET including boost, flyback, SEPIC and various LED Driver applications. The device features include programmable soft start, overcurrent protection with automatic retry and programmable oscillator frequency. Current mode control provides improved transient response and simplified loop compensation. The main difference between the two parts is the reference voltage to which the error amplifier regulates the FB pin.
Applications
- LED Lighting
- Industrial Control Systems
- Battery Powered Systems
Key features
- For Boost, Flyback, SEPIC, LED Drive Apps
- Wide Input Operating Voltage: 4.5 V to 52 V
- Adjustable Oscillator Frequency
- Fixed Frequency Current Mode Control
- Internal Slope Compensation
- Integrated Low-Side Driver
- Programmable Closed Loop Soft Start
- Overcurrent Protection
- External Synchronization Capable
- Reference 700-mV (TPS40210), 260-mV (TPS40211)
- Low Current Disable Function
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS40210DGQ#C1519417TI · MSOP-10-EP | TI | MSOP-10-EP | 30 | ₹177.76 · 30 in stock | View |
