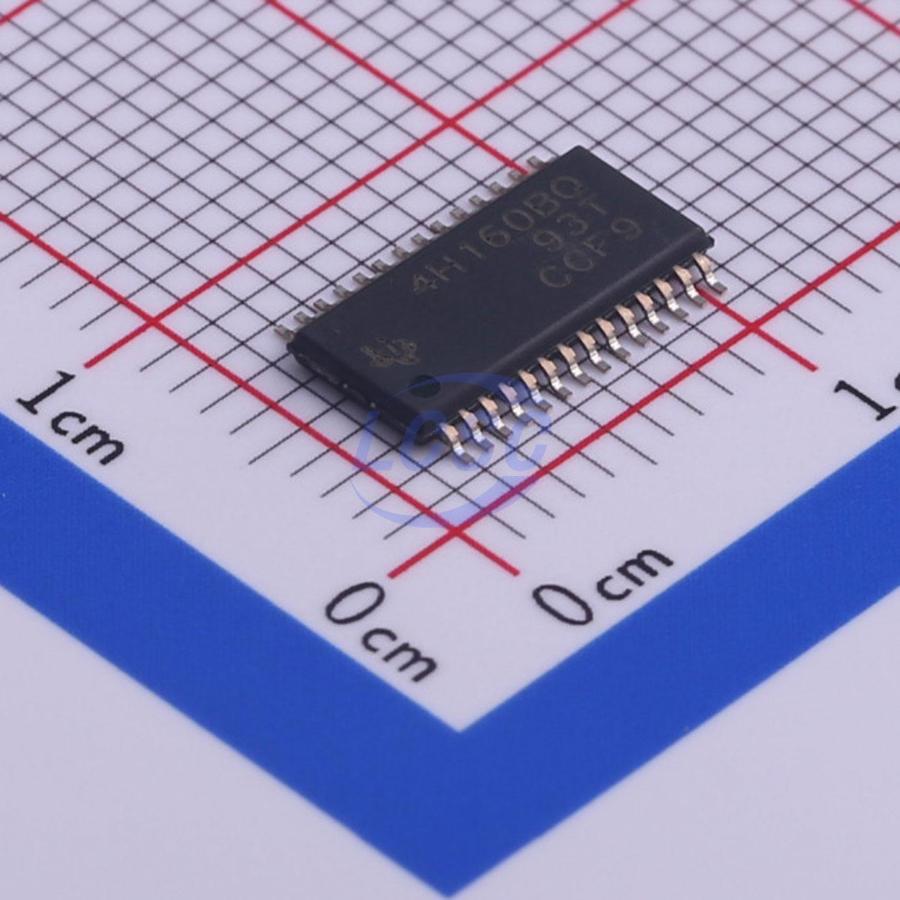

TPS4H160BQPWPRQ1
4 Active High 1A High Side Switch HTSSOP-28-EP Power Distribution Switches, Load Drivers RoHS
HTSSOP-28-EPROHS3 CompliantActive
Quad-Channel Smart High-Side Switch
- Manufacturer
- TI
- Manufacturer part #
- TPS4H160BQPWPRQ1
- Store part #
- C471053
- Package / case
- HTSSOP-28-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,581 in stock
#C471053
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹366.88 | ₹366.88 |
| 10+ | ₹325.64 | ₹3,256.40 |
| 30+ | ₹299.81 | ₹8,994.30 |
| 100+ | ₹273.54 | ₹27,354.00 |
| 500+ | ₹261.60 | ₹1,30,800.00 |
| 1,000+ | ₹256.38 | ₹2,56,380.00 |
1 × ₹366.88
₹366.88
excl. GST
₹432.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPS4H160BQPWPRQ1
₹366.88 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Soft-start
- number of channels
- 4
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1A
- RDS(on)
- 160mΩ
- Operating Voltage
- 3.4V~40V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The TPS4H160-Q1 device is fully protected quadchannel smart high-side switch with four integrated 160-mΩ NMOS power FETs. Full diagnostics and high-accuracy current sense enable intelligent control of the load. An external adjustable current limit improves the reliability of whole system by limiting the inrush or overload current.
Applications
- Multichannel LED Drivers, Bulb Drivers
- Multichannel High-Side Switches for Sub-Modules
- Multichannel High-Side Relay, Solenoid Drivers
- PLC Digital Output Drivers
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range Device HBM ESD Classification Level H3A
- Device CDM ESD Classification Level C4B
- Quad-Channel 160-mΩ Smart High-Side Switch
- With Full Diagnostics
- Version A: Open-Drain Digital Output Version B: Current-Sense Analog Output
- Wide Operating Voltage 3.4 V to 40 V
- Ultralow Standby Current, <500 nA
- High-Accuracy Current Sense: ±15% Under >25 mA Load
- Adjustable Current Limit With External Resistor, ±15% Under >500 mA Load
- Protection Short-to-GND Protection by Current Limit (Internal or External) Thermal Shutdown With Latch Off Option and Thermal Swing Inductive Load Negative Voltage Clamp With Optimized Slew Rate Loss-of-GND and Loss-of-Battery Protection
- Overcurrent and Short-to-Ground Detection
- Open-Load and Short-to-Battery Detection
- Global Fault Report for Fast Interrupt
- 28-Pin Thermally-Enhanced PWP Package
