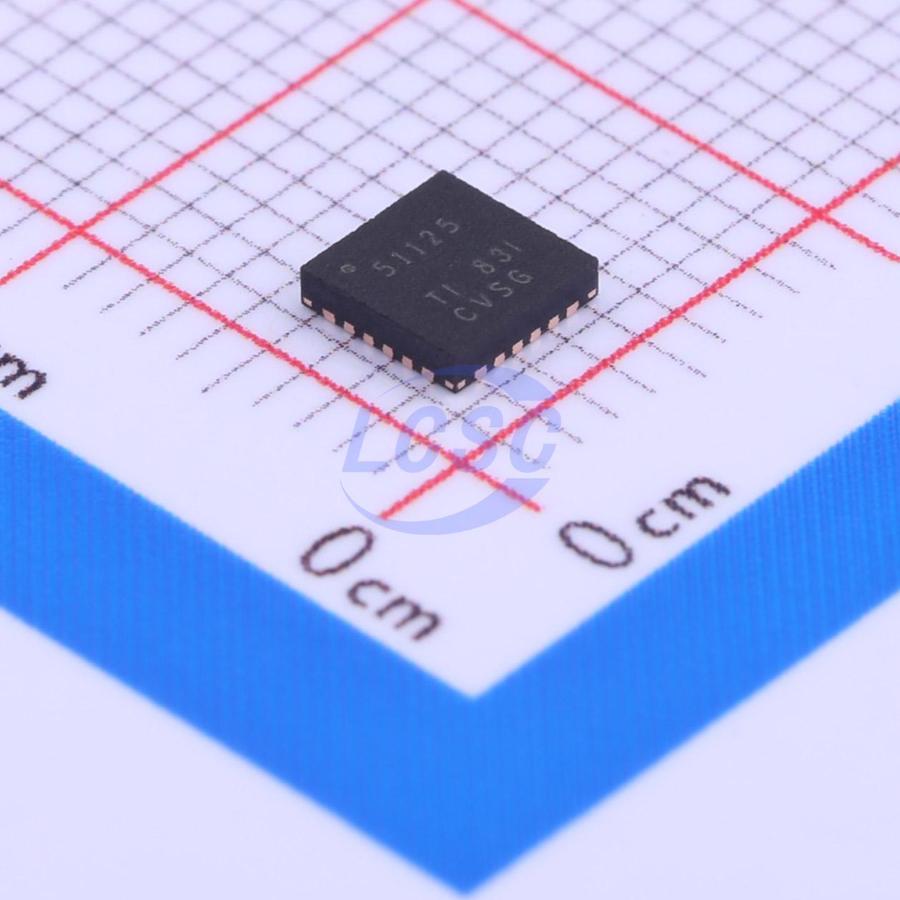

TPS51125RGER

The TPS51125 is a cost-effective, dual-synchronous buck controller targeted for notebook system power supply solutions. The device provides 5-V and 3.3-V LDOs and requires few external components. The 270-kHz VCLK output can be used to drive an external charge pump, thus generating gate drive voltage for the load switches without reducing the efficiency of the main converter. The TPS51125 supports high-efficiency, fast-transient response and provides a combined power-good signal. Out-ofAudio mode light-load operation enables low acoustic noise at much higher efficiency than conventional forced PWM operation. Adaptive on-time D-CAP™ control provides convenient and efficient operation. The part operates with supply input voltages ranging from 5.5 V to 28 V and supports output voltages from 2 V to 5.5 V. The TPS51125 is available in a 24-pin QFN package and is specified from -40℃ to 85℃ ambient temperature range.

Applications

• Notebook Computers
• I/O Supplies
• System Power Supplies

Key features

• Wide Input Voltage Range: 5.5 V to 28 V
• Output Voltage Range: 2 V to 5.5 V
• Built-In 100-mA, 5-V and 3.3-V LDO With Switches
• Built-In 1% 2-V Reference Output
• With or Without Out-of-Audio™ Mode Selectable
• Light-Load and PWM-Only Operation
• Internal 1.6-ms Voltage Servo Soft-Start
• Adaptive On-Time Control Architecture With Four Selectable Frequency Setting
• 4500 ppm/°C RDS(on) Current Sensing
• Built-In Output Discharge
• Powergood Output
• Built-In OVP/UVP/OCP
• Thermal Shutdown (Nonlatch)
• QFN, 24-Pin (RGE)
