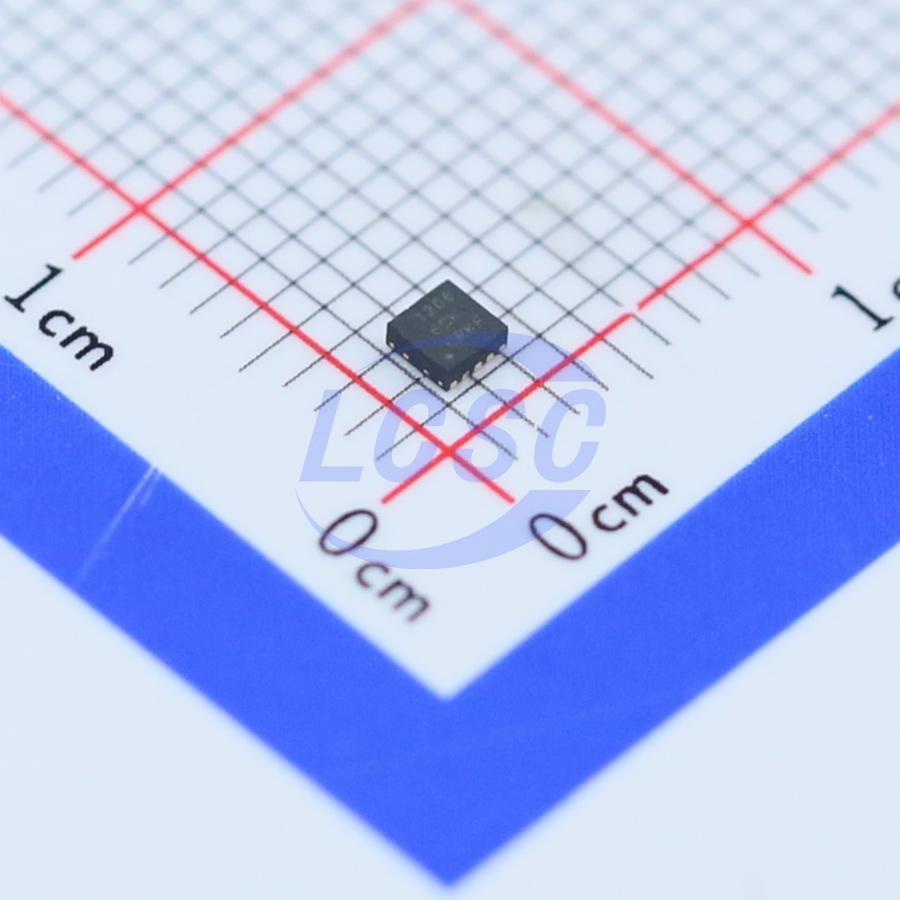

TPS51206DSQR

2A Positive 6.5V SON-10-EP(2x2) Special Purpose Regulators RoHS

SON-10-EP(2x2)ROHS3 CompliantActive

2A peak sink/source current DDR termination regulator with VTTREF buffered reference outputs suitable for DDR2, DDR3, DDR3L, and DDR4

Manufacturer: TI
Manufacturer part #: TPS51206DSQR
Store part #: C88038
Package / case: SON-10-EP(2x2)
Category: Special Purpose Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

77,417 in stock

#C88038

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹50.86	₹50.86
10+	₹41.45	₹414.50
30+	₹37.47	₹1,124.10
100+	₹32.41	₹3,241.00
500+	₹30.23	₹15,115.00
1,000+	₹28.79	₹28,790.00

Quantity (min 1)

1 × ₹50.86

₹50.86

excl. GST

₹60.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS51206DSQR

₹50.86 for 1 + GST

Specifications

Features: Input under-voltage protection;Thermal shutdown;Output discharge
Number of Outputs: 2
Output Voltage: 500mV~900mV
Output Current: 2A
Quiescent Current: 170uA
Output Configuration: Positive
Voltage - Supply: 6.5V
Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.089 g

Overview

The TPS51206 is a sink/source double data rate (DDR) termination voltage regulator with a VTTREF buffered reference output. This device is specifically designed for space-constrained systems with low input voltage, low cost, and a small number of external components. The TPS51206 can maintain a fast transient response and only requires one 10 μF ceramic output capacitor. The TPS51206 supports the remote sensing function and can meet all the power requirements of DDR2, DDR3, low-power DDR3 (DDR3L), and DDR4 VTT buses. The VTT has a peak current capability of ±2 A. This device supports all DDR power states, putting VTT in a high-impedance state in S3 state (suspend to RAM); discharging VTT and VTTREF in S4/S5 states (suspend to disk). The TPS51206 is available in a 10-pin, 2 mm × 2 mm SON (DSQ) PowerPAD package and is rated for an operating temperature range of -40°C to 85°C.

Applications

DDR2, DDR3, DDR3L, and DDR4 memory power supply
SSTL_18, SSTL_15, SSTL_135, and HSTL termination

Key features

Power supply input voltage: supports 3.3V and 5V rails
VLDOIN input voltage range: VTT +0.4V to 3.5V
VTT termination regulator
Output voltage range: 0.5V to 0.9V
2A peak sink and source current
Only 10μF MLCC output capacitor required
±20mV accuracy
VTTREF buffered reference output VDDQ/2 ±1% accuracy, 10mA sink/source current
High-impedance state (S3) and soft-stop (S4 and S5) support, selectable via S3 and S5 inputs
Thermal protection
10-pin 2mm×2mm small outline no-lead (SON) (DSQ) package
