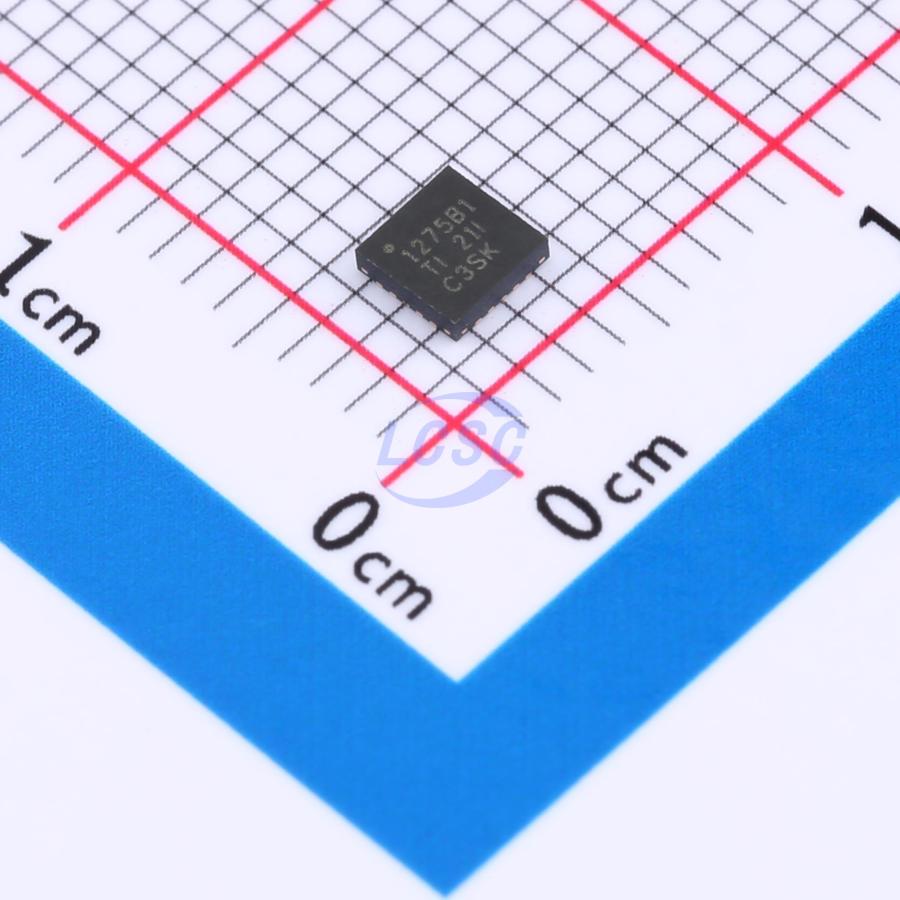

TPS51275B-1RUKR

Buck Switching Regulator IC 4 Output WFQFN-20-EP(3x3)

WFQFN-20-EP(3x3)ROHS3 CompliantActive

Dual Synchronous Buck Controller for 5V and 3.3V LDOs

Manufacturer: TI
Manufacturer part #: TPS51275B-1RUKR
Store part #: C702257
Package / case: WFQFN-20-EP(3x3)
Category: Voltage Regulators - Linear + Switching
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,026 in stock

#C702257

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹72.37	₹72.37
10+	₹58.98	₹589.80
30+	₹52.29	₹1,568.70
100+	₹45.78	₹4,578.00
500+	₹39.99	₹19,995.00
1,000+	₹37.99	₹37,990.00

Quantity (min 1)

1 × ₹72.37

₹72.37

excl. GST

₹85.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS51275B-1RUKR

₹72.37 for 1 + GST

Specifications

Synchronous Rectifier: Yes
Function: Step-down type
Frequency - Switching: 300kHz;355kHz
Number of Outputs: 4
Output Type: Fixed
Output Voltage: 5V;3.3V
Quiescent Current: 180uA
Operating Voltage: 5V~24V
Operating Temperature: -40℃~+85℃
Topology: Buck
Features: Built-in LDO regulator;Light load efficient mode;Output discharge;Adjustable current limiting;Operating status indication;Overcurrent Protection;Cycle-by-cycle current limiting

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.065 g

Overview

The TPS51275B-1 is a cost-effective dual synchronous buck controller designed for notebook system power solutions. The device integrates 5V and 3.3V LDO regulators and requires minimal external components. It can use the 260kHz VCLK output to drive an external charge pump, generating gate drive voltage for load switches without degrading the efficiency of the main converter. The TPS51275B-1 delivers both high efficiency and fast transient response while providing a combined power-good signal. The adaptive on-time D-CAP control scheme ensures convenient and efficient operation. The device supports an input voltage range of 5V to 24V with 5V and 3.3V output voltage options. The TPS51275B-1 is available in a 20-pin 3mm×3mm WQFN package, rated for a temperature range of -40°C to 85°C.

Applications

Laptop
Tablet
Desktop

Key features

Input voltage range: 5V to 24V
Output voltage: 5V and 3.3V (adjustable range ±10%)
Integrated 100mA, 5V and 3.3V LDO regulators
Clock output for charge pump
±1% reference accuracy
Adaptive on-time D-CAP mode control architecture supporting 300kHz and 355kHz frequency settings
Out-of-Audio (OOA) light-load operation
Internal 3.2ms voltage servo soft-start
Low-side RDS(on) current sensing
Integrated output discharge function
Independent enable inputs for switching
Dedicated OC setting pin
Power Good indicator
OVP, UVP, and OCP
Non-latching UVLO and OTP protection
20-pin 3mm×3mm WQFN (RUK) package
