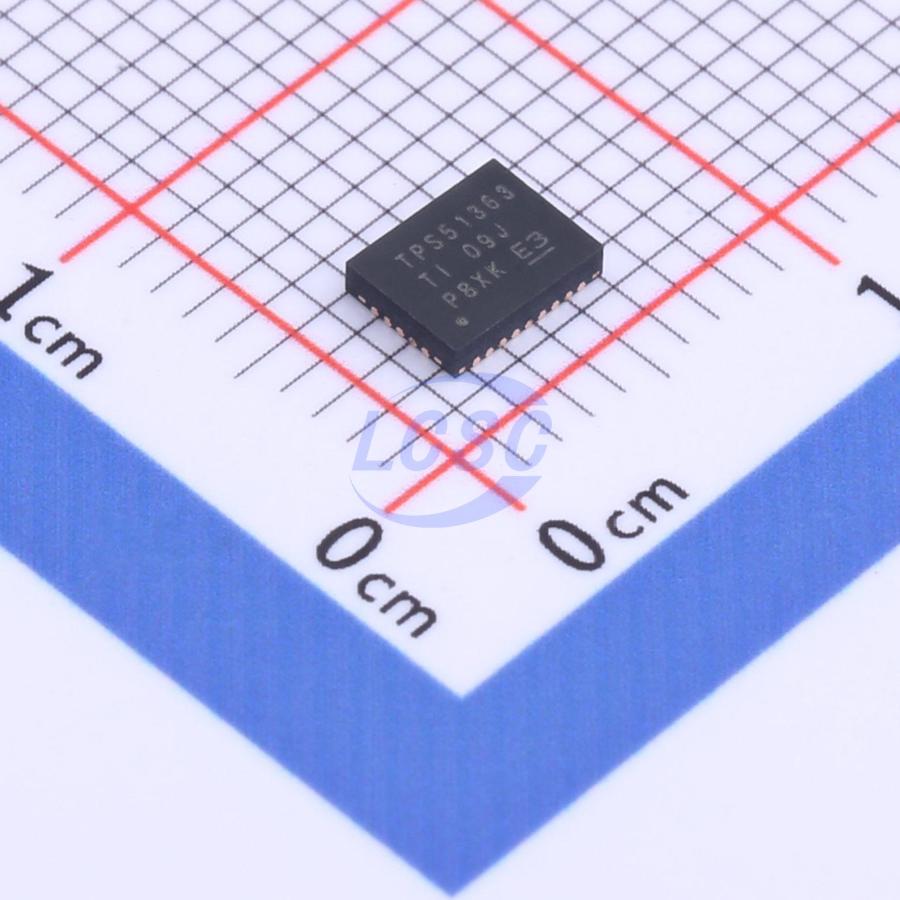

TPS51363RVER

The TPS51363 is a high-voltage input synchronous converter with integrated FETs, based on the D-CAP2™ control topology for fast transient response with support for POSCAP and all-MLCC output capacitors. It provides the highest-density solution for single-output power rails such as VCCIO and VDDQ for DDR notebook memory, or any point-of-load (POL) application. The feature set includes 400kHz and 800kHz switching frequencies, soft-start time settable by an external capacitor, automatic skip mode, pre-bias startup, integrated bootstrap switch, power good, enable, and a comprehensive suite of fault protection features including OCL, UVP, OVP, 5V UVLO, and thermal shutdown. Offered in a 3.5mm×4.5mm, 0.4mm ball pitch, 28-pin QFN (RVE) package, rated for an operating temperature range of -10°C to 85°C.

Applications

• Laptop (VCCIO) memory rail (DDR VDDQ)

Key features

• Input voltage range: 3V to 22V
• Output voltage range: 0.6V to 2V
• 8A or 10A integrated FET converter
• Minimal external component count
• Soft-start time adjustable via external capacitor
• Switching frequency: 400kHz and 800kHz
• D-CAP2™ architecture for compatibility with POSCAP and all-MLCC output capacitors
• Integrated temperature-compensated low-side RDS(on) sensing for precise OCL protection
• Power good output
• OCL, OVP, UVP, and UVLO protection
• Thermal shutdown (non-latching)
• Output discharge function
• Integrated boost MOSFET switch
