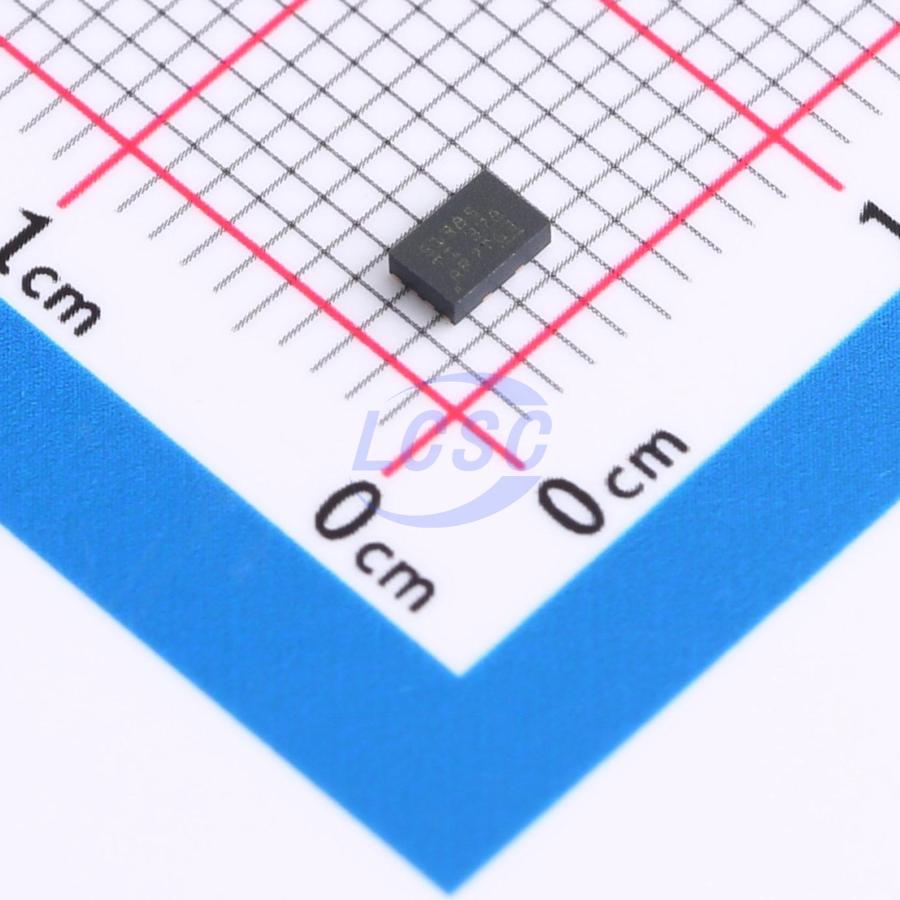

TPS51385RJNR

Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 7A VQFN-HR-12(3x2)

VQFN-HR-12(3x2)ROHS3 CompliantActive

4.5-V to 24-V Input, 7-A Synchronous Buck Converter With Latched OVP/UVP and Adjustable Soft Start

Manufacturer: TI
Manufacturer part #: TPS51385RJNR
Store part #: C22418767
Package / case: VQFN-HR-12(3x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,105 in stock

#C22418767

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹88.95	₹88.95
10+	₹79.16	₹791.60
30+	₹74.15	₹2,224.50
100+	₹69.36	₹6,936.00
500+	₹66.32	₹33,160.00
1,000+	₹65.03	₹65,030.00

Quantity (min 1)

1 × ₹88.95

₹88.95

excl. GST

₹104.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS51385RJNR

₹88.95 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Light load efficient mode;Operating status indication;Protection latch;Cycle-by-cycle current limiting;Output discharge;Built-in LDO regulator
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~24V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 7A
Quiescent Current: 84uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The TPS51385 is a monolithic, 7-A, synchronous buck converter with adaptive on-time D-CAP3 control mode. Integrated low RDS(on) power MOSFETs enable high efficiency and offer ease-of-use with minimum external component count for space-constrained power systems. Features include an accurate reference voltage, fast load transient response, autoskip mode operation for light load efficiency, OOA light load operation with >25-kHz switching frequency, DCAP3 control mode with good line, load regulation, and does not require external compensation. The TPS51385 provides complete protection OVP, UVP, OCP, OTP and UVLO. The device is combined power-good signal and output discharge function. The TPS51385 supports both internal and external soft-start time options. The device has the internal fixed soft-start time 1 ms. If the application needs longer soft-start time, the external SS pin can be used to achieve longer soft-start time by connecting the external capacitor. The TPS51385 are available in a thermally enhanced 12-pin QFN package and are designed to operate from -40°C to 125°C junction temperature.

Applications

Notebook and PC computers
Ultrabook, tablet computers
TV and STB, point-of-load (POL)
Distributed power systems

Key features

4.5-V to 24-V input voltage range
0.6-V to 5.5-V output voltage range
Integrated 22-mΩ and 11-mΩ MOSFETs
Support 7-A continuous IOUT
84-μA low quiescent current
±1% reference voltage (0.6 V) at 25°C
±1.5% reference voltage (0.6 V) at -40°C to 125°C
1-MHz switching frequency
D-CAP3 control mode for fast transient response
Supports POSCAP and all MLCC output capacitor
Adjustable soft start and internal 1-ms soft start
Selectable PSM and Out-of-Audio (OOA) mode under light load and supports on-the-fly change
Large duty operation support
Power-good indicator to monitor output voltage
Latched output OV and UV protection
Non-latched UVLO and OT protection
Cycle-by-cycle overcurrent protection
Built-in output discharge feature
Small 2.00 mm × 3.00 mm HotRod QFN package
Pin-to-pin compatible with TPS51386 (24 V, 8 A)
