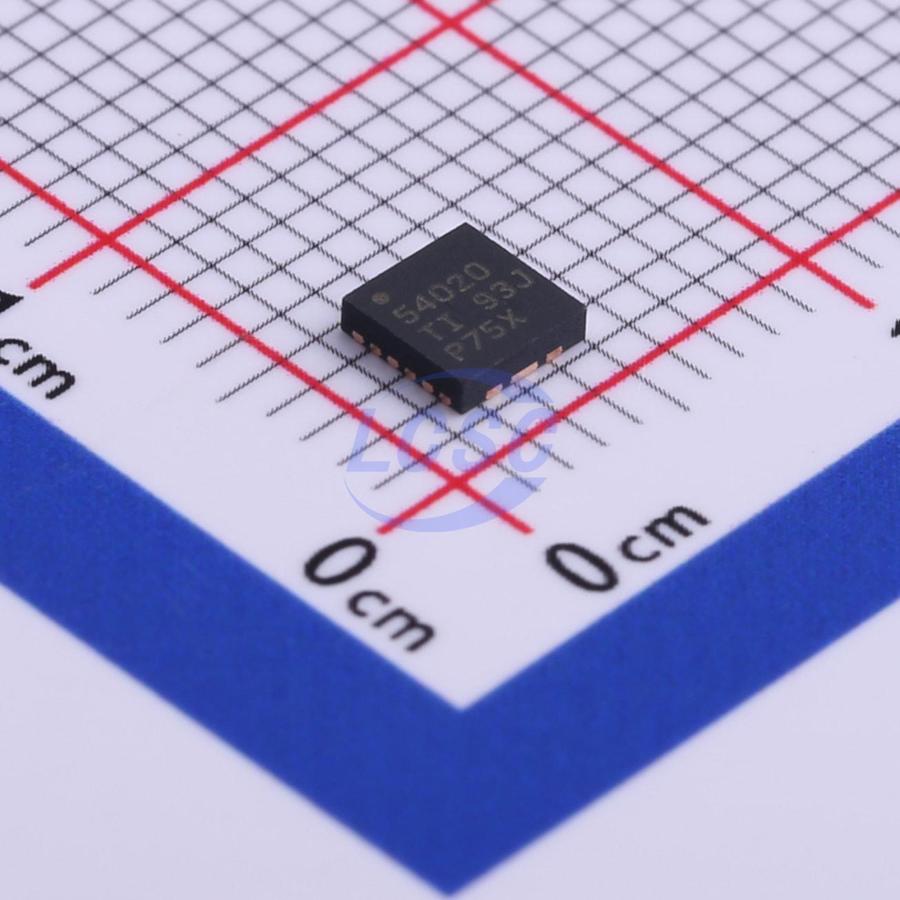

TPS54020RUWR

The TPS54020 is a 10-A, 4.5-V to 17-V input SWIFT converter. The innovative 3.5 mm × 3.5 mm HotRod package optimizes high-density step-down designs. The TPS54020 is a full-featured converter. High efficiency is achieved through the innovative integration and packaging of the high-side and lowside MOSFETs. The TPS54020 operates at continuous current mode (CCM) at higher load conditions, and transitions to Eco-mode while skipping pulses to boost the efficiency at light loads. Current limiting on both MOSFETs provides device and system protection. Cycle-by-cycle current limiting in the high-side MOSFET protects for overload situations. Low-side MOSFET zero current detection turns off the low-side MOSFET while operating under light loads. Three selectable current-limit thresholds allow a good fit for various applications. A hiccup or cycle-by-cycle overcurrent protection scheme is also selectable. Thermal shutdown protection disables switching when die temperature exceeds the thermal shutdown trip point and enables switching after the built-in thermal hysteresis and shutdown hiccup time. The SS pin controls the output voltage start-up ramp and allows for selectable soft-start times. Power supply sequencing is also available by configuring the enable (EN) and the open-drain power-good (PWRGD) pins. Two TPS54020 devices may be synchronized 180° out-of-phase by using the SYNC_OUT and CLK pins.

Applications

• Power for FPGAs, SoCs, DSPs and processors
• Wireless, data, and cloud infrastructure
• Gaming, DTV, STB, and smart grid systems

Key features

• Integrated 8-mΩ and 6-mΩ MOSFETs
• Thermally enhanced 3.5 mm × 3.5-mm HotRod package
• Peak-current-mode control
• Eco-mode pulse skip for higher efficiency
• Overcurrent protection for both MOSFETs
• Selectable overcurrent protection schemes
• Selectable overcurrent protection levels
• Split power rail: 1.6 V to 17 V on PVIN
• 0.6-V Voltage Reference With ±1% Accuracy
• 200-kHz to 1.2-MHz Switching frequency
• Synchronizes to external clock
• Start-up into prebiased outputs
• Overtemperature and overvoltage protection
• -40°C to +150°C Operating junction temperature range
• Adjustable soft start and power sequencing
• Power-good output monitor for undervoltage and overvoltage
• SYNC_OUT function provides output clock signal 180° out-of-phase
