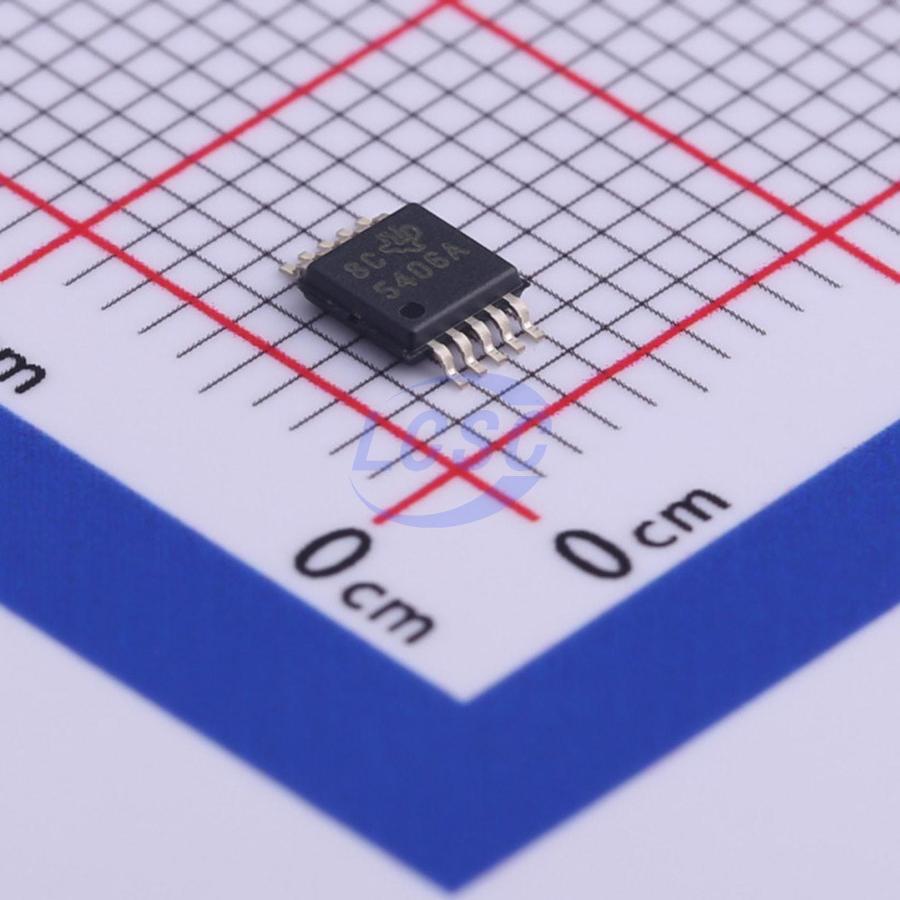

TPS54060ADGQR
2.5MHz Step-down type Adjustable 800mV~58V 500mA SSOP-10 Voltage Regulators - DC DC Switching Regulators RoHS
SSOP-10ROHS3 CompliantActive
60V 0.5A Step-Down DC-DC Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS54060ADGQR
- Store part #
- C477925
- Package / case
- SSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
391 in stock
#C477925
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.99 | ₹132.99 |
| 10+ | ₹106.49 | ₹1,064.90 |
| 30+ | ₹93.23 | ₹2,796.90 |
| 100+ | ₹79.98 | ₹7,998.00 |
| 500+ | ₹72.14 | ₹36,070.00 |
| 1,000+ | ₹68.24 | ₹68,240.00 |
1 × ₹132.99
₹132.99
excl. GST
₹156.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS54060ADGQR
₹132.99 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 2.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Frequency synchronization;Adjustable soft-start;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~58V
- Output Current
- 500mA
- Quiescent Current
- 116uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The TPS54060A device is a 60V, 0.5A, step down regulator with an integrated high side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116μA. Using the enable pin, shutdown supply current is reduced to 1.3μA, when the enable pin is low.
Applications
- 12-V, 24-V and 48-V Industrial and Commercial
- Low Power Systems
- Aftermarket Auto Accessories: Video, GPS, Entertainment
Key features
- 3.5V to 60V Input Voltage Range
- 200mΩ High-Side MOSFET
- High Efficiency at Light Loads with a Pulse Skipping Eco-Mode™
- Tighter Enable Threshold than TPS54060 for More Accurate UVLO Voltage
- Adjustable UVLO Voltage and Hysteresis
- 116μA Operating Quiescent Current
- 1.3μA Shutdown Current
- 100kHz to 2.5MHz Switching Frequency
- Synchronizes to External Clock
- Adjustable Slow Start/Sequencing
- UV and OV Power Good Output
- 0.8-V Internal Voltage Reference
- MSOP-10 and 3mm x 3mm VSON-10 Package With PowerPAD™
- Supported by WEBENCH and SwitcherPro™ Software Tool
