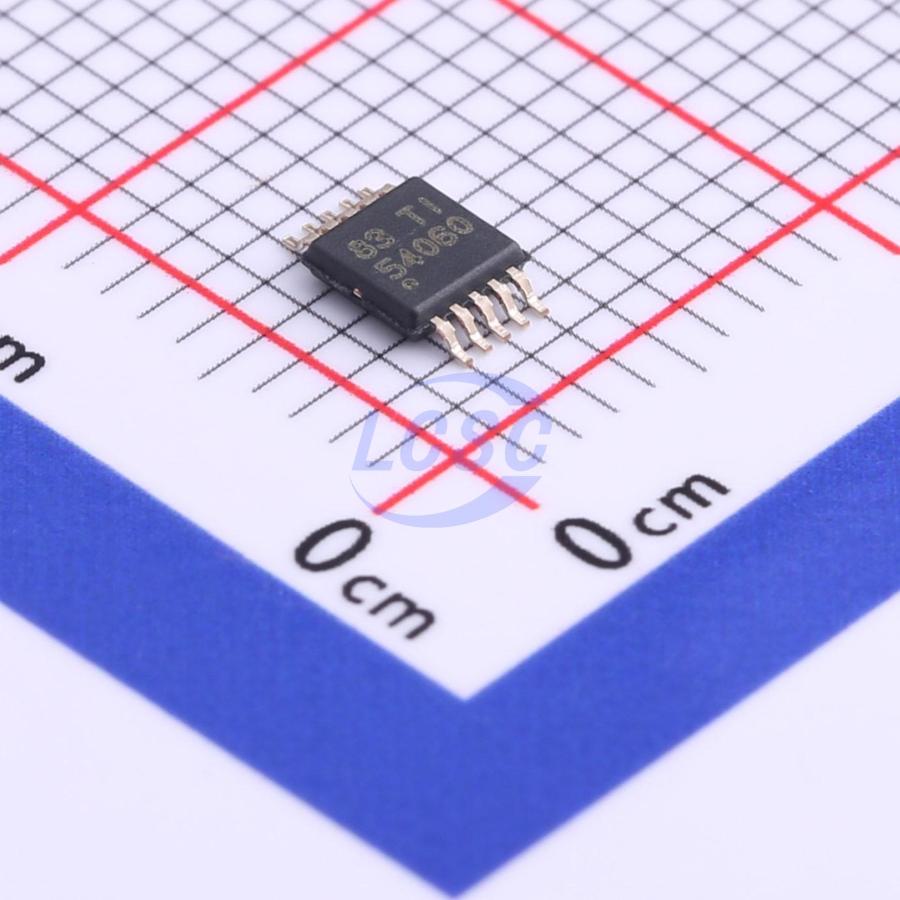

TPS54060DGQR

The TPS54060 device is a 60V, 0.5A, step down regulator with an integrated high side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116μA. Using the enable pin, shutdown supply current is reduced to 1.3μA, when the enable pin is low. Under voltage lockout is internally set at 2.5V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. An open drain power good signal indicates the output is within 93% to 107% of its nominal voltage. A wide switching frequency range allows efficiency and external component size to be optimized. Frequency fold back and thermal shutdown protects the part during an overload condition. The TPS54060 is available in 10 pin thermally enhanced MSOP and 10 pin 3mm x 3mm SON PowerPad™ packages.

Applications

• 12-V, 24-V and 48-V Industrial and Commercial Low Power Systems
• Aftermarket Auto Accessories: Video, GPS, Entertainment

Key features

• 3.5V to 60V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads with a Pulse Skipping Eco-Mode™
• 116μ Operating Quiescent Current
• 1.3μA Shutdown Current
• 100kHz to 2.5MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start/Sequencing
• UV and OV Power Good Output
• Adjustable UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• MSOP10 and 3mm x 3mm SON Package With PowerPAD™
• Supported by SwitcherPro™ Software Tool
