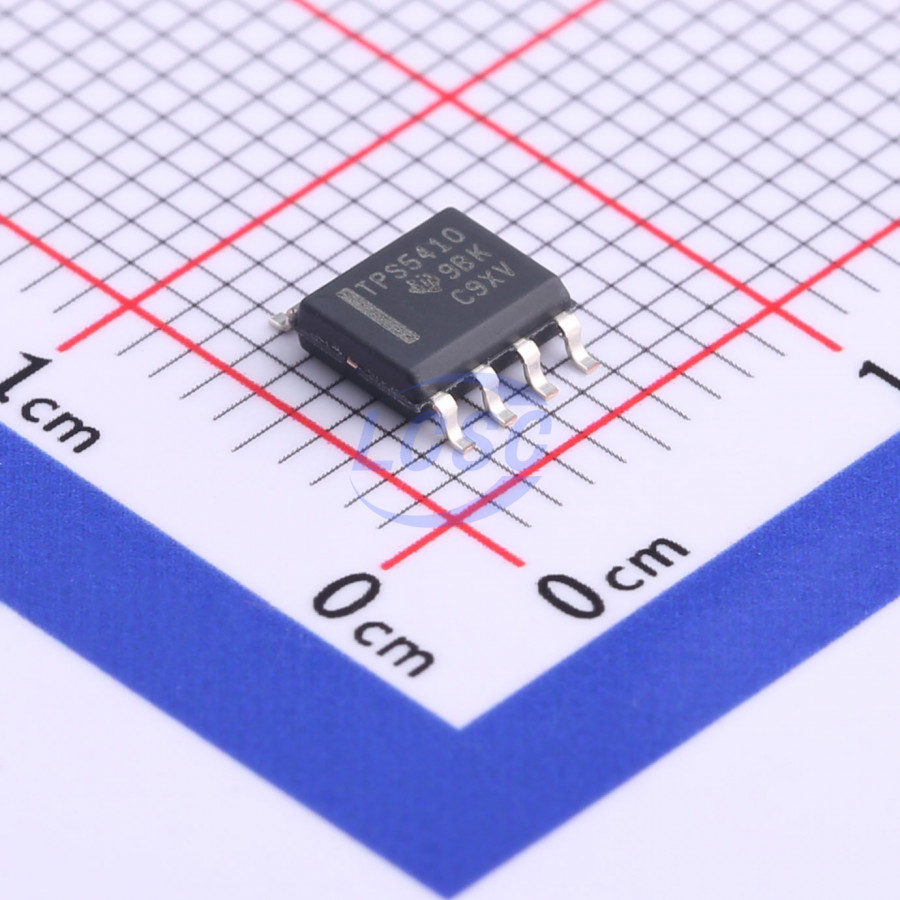

TPS5410DR

The TPS5410 is a high-output-current PWM converter that integrates a low resistance high side N-channel MOSFET. Included on the substrate with the listed features is a high performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions; an undervoltagelockout circuit to prevent start-up until the input voltage reaches 5.5 V; an internally set slow-start circuit to limit inrush currents; and a voltage feedforward circuit to improve the transient response. Using the ENA pin, shutdown supply current is reduced to 18 μA typically. Other features include an active high enable, overcurrent limiting, overvoltage protection and thermal shutdown. To reduce design complexity and external component count, the TPS5410 feedback loop is internally compensated. The TPS5410 device is available in an easy to use 8- pin SOIC package.

Applications

• Consumer: Set-top Box, DVD, LCD Displays
• Industrial and Car Audio Power Supplies
• Battery Chargers, High Power LED Supply
• 12-V/24-V Distributed Power Systems

Key features

• Wide Input Voltage Range: 5.5 V to 36 V
• Up to 1-A Continuous (1.2-A Peak) Output Current
• High Efficiency up to 95% Enabled by 110-mΩ Integrated MOSFET Switch
• Wide Output Voltage Range: Adjustable Down to 1.22 V with 1.5% Initial Accuracy
• Internal Compensation Minimizes External Parts Count
• Fixed 500-kHz Switching Frequency for Small Filter Size
• Improved Line Regulation and Transient Response by Input Voltage Feed Forward
• System Protected by Over Current Limiting, Over Voltage Protection and Thermal Shutdown
• -40°C to 125°C Operating Junction Temperature Range
• Available in Small 8-Pin SOIC Package
