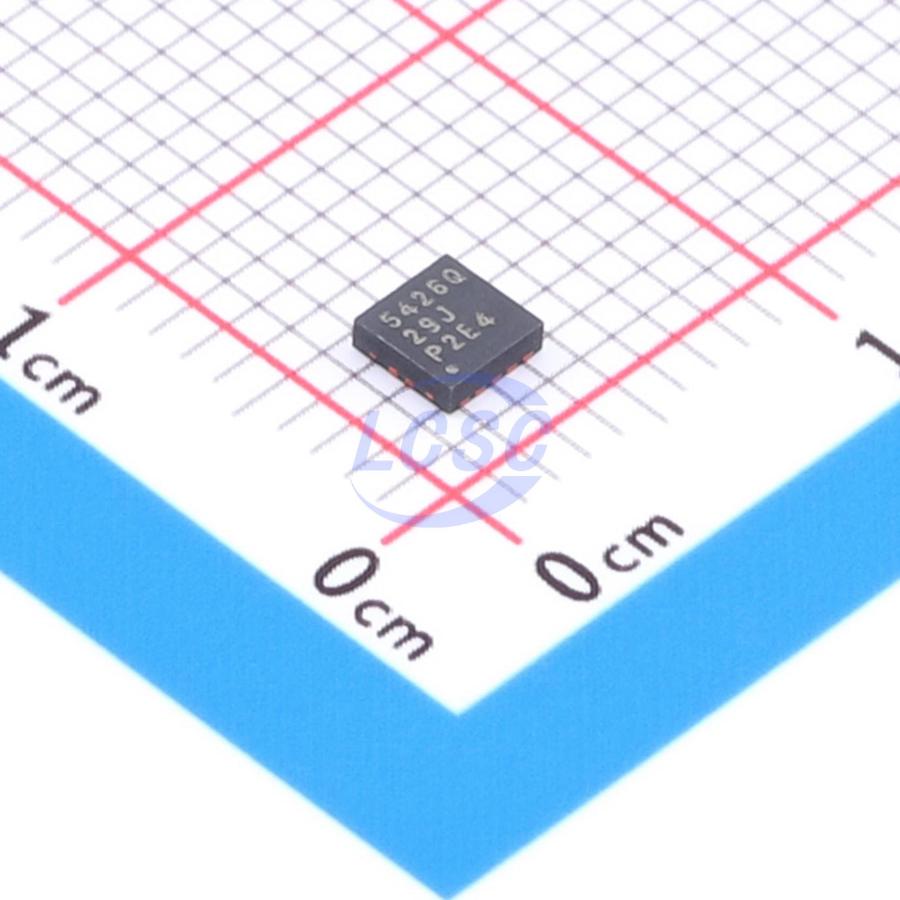

TPS54260QDRCTQ1

The TPS54260-Q1 device is a 60-V, 2.5-A, stepdown regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 138 μA. Using the enable pin, shutdown supply current is reduced to 1.3–μA, when the enable pin is low. Under voltage lockout is internally set at 2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing and tracking. An open drain power good signal indicates the output is within 94% to 107% of the nominal voltage. A wide switching frequency range allows efficiency and external component size to be optimized. Frequency fold back and thermal shutdown protects the part during an overload condition. The TPS54260-Q1 is available in 10-pin thermallyenhanced HVSSOP and 10-pin 3 mm × 3 mm SON package.

Applications

• 12-V and 24-V Automotive and Industrial Systems
• Infotainment, Cluster, and ADAS Applications

Key features

• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40℃ to 125℃ Ambient Operating Temperature Range – Device HBM ESD Classification 2 – Device CDM ESD Classification Level C4B
• 3.5-V to 60-V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads With a Pulse Skipping Eco-mode
• 138-μA Operating Quiescent Current
• 1.3–μA Shutdown Current
• 100-kHz to 2.5-MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start and Sequencing
• UV and OV Power Good Output
• Adjustable UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• 10-Pin HVSSOP and 10-Pin 3 mm × 3 mm SON Packages
• Supported by WEBENCH Software Tool
