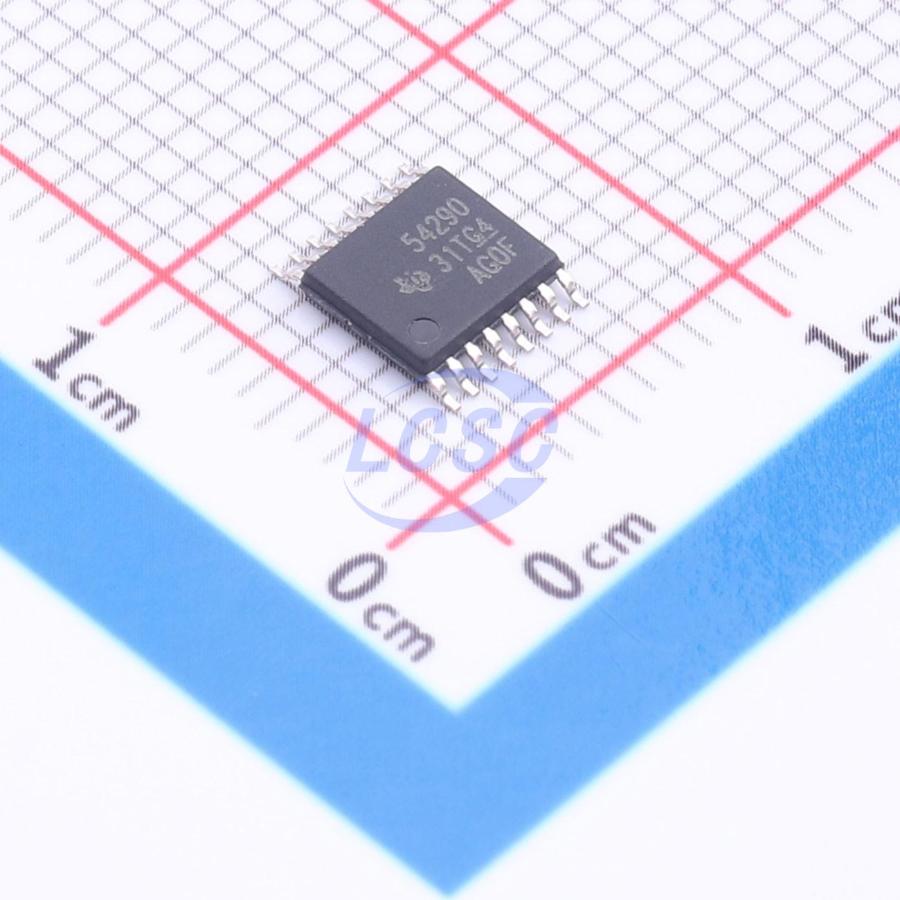

TPS54290PWPR

The TPS54290, TPS54291, and TPS54292 devices are dual-output, fully synchronous buck converters capable of supporting applications with a minimal number of external components. It operates from a 4.5-V to 18-V input supply voltage, and supports output voltages as low as 0.8 V and as high as 90% of the input voltage. Both high-side and low-side MOSFETs are integrated to provide fully synchronous conversion with higher efficiency. Channel 1 can provide up to 1.5 A of continuous current. Meanwhile, Channel 2 supports up to 2.5 A. Current mode control simplifies the compensation. The external compensation adds flexibility for the user to choose different type of output capacitors. 180° out-of-phase operation reduces the ripple current through the input capacitor, providing the benefit of reducing input capacitance, alleviating EMI and increasing capacitor life.

Applications

• Set-Top Boxes
• Digital TVs
• Power for DSP
• Consumer Electronics

Key features

• 4.5-V to 18-V Input Range
• Output Voltage Range 0.8 V to D_MAX × V_IN
• Fully Integrated Dual Buck: 1.5 A and 2.5 A
• Three Fixed Switching Frequency Versions: TPS54290: 300 kHz TPS54291: 600 kHz TPS54292: 1.2 MHz
• Integrated UVLO 0.8 V_REF With 1% Accuracy (0℃ to 85℃)
• Internal Soft Start: TPS54290: 5.2 ms TPS54291: 2.6 ms TPS54292: 1.3 ms
• Dual PWM Outputs 180° Out-of-Phase
• Dedicated Enable for Each Channel
• Current Mode Control for Simplified Compensation
• External Compensation
• Pulse-by-Pulse Overcurrent Protection, 2.2-A and 3.8-A Overcurrent Limit
• Integrated Bootstrap Switch
• Thermal Shutdown Protection at 145℃
• 16-Pin PowerPAD HTSSOP Package
