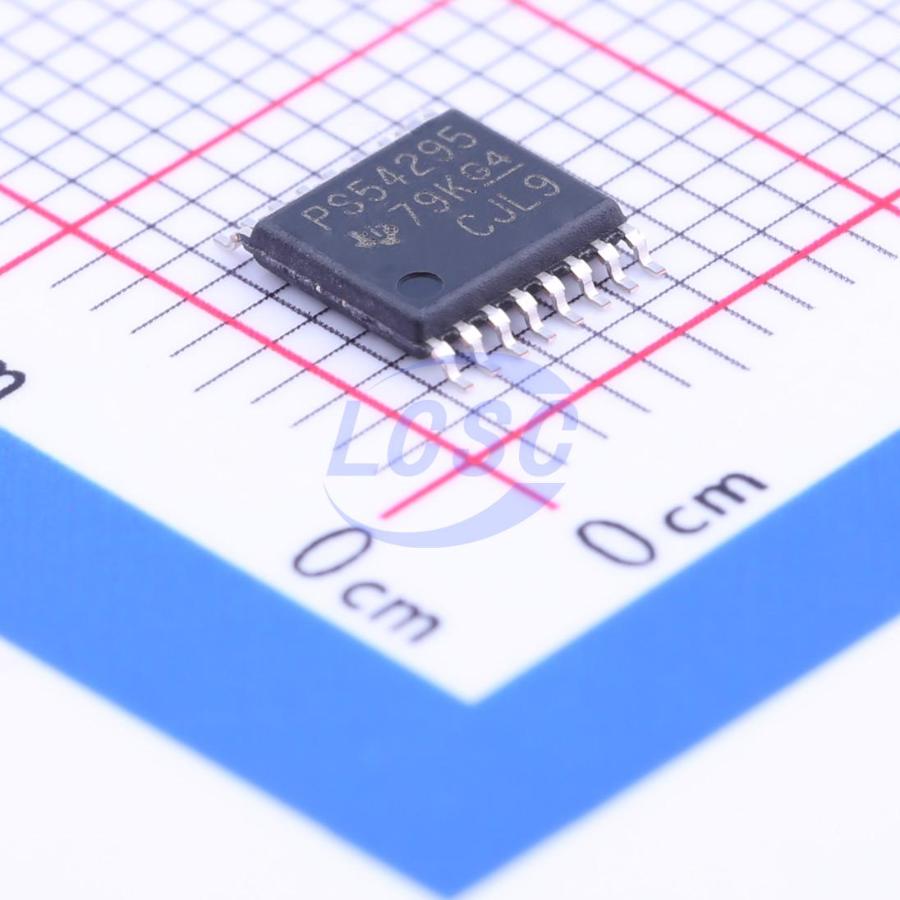

TPS54295PWPR

The TPS54295 is a dual adaptive on-time D-CAP2 mode synchronous buck converter. It helps system designers complete power bus regulator sets for various end equipment with a cost-effective solution requiring fewer components and lower standby current. The main control loop employs D-CAP2 mode control, enabling fast transient response without external compensation components. Adaptive on-time control enables seamless transition between PWM mode at higher load conditions and Eco-mode operation at light loads. Eco-mode allows the TPS54295 to maintain high efficiency under light-load conditions. It is compatible with both low-ESR output capacitors such as POSCAP or SP-CAP, and ultra-low-ESR ceramic capacitors. The device operates efficiently and conveniently with input voltages ranging from 4.5V to 18V. It is available in a 4.4mm×5mm 16-pin HTSSOP (PWP) package and a 4mm×4mm 16-pin VQFN (RSA) package, designed to operate over an ambient temperature range of -40°C to 85°C.

Applications

• Point-of-load regulation in low-power systems
• Digital TV power networks
• Home terminal equipment
• Digital set-top boxes (STB)
• DVD players and recorders
• Game consoles and other devices

Key features

• D-CAP2 control mode, fast transient response, no external components required for loop compensation, compatible with ceramic output capacitors
• Wide input voltage range: 4.5V to 18V
• Output voltage range: 0.76V to 7V
• High-efficiency integrated FETs optimized for low duty cycle applications – 150mΩ (high-side) and 100mΩ (low-side)
• High initial reference accuracy
• Low-side rDS(ON) lossless current sensing
• Adjustable soft-start
• Non-sinking pre-biased soft-start
• 700kHz switching frequency
• Cycle-by-cycle overcurrent limiting
• Overcurrent limit (OCL), overvoltage protection (OVP), undervoltage protection (UVP), undervoltage lockout (UVLO), and thermal shutdown (TSD) protection
• Adaptive gate drive with integrated bootstrap PMOS switch
• Constant OCP with thermally compensated rDS(ON) at 4000ppm/°C temperature coefficient
• 16-pin HTSSOP package and 16-pin VQFN package
• Auto-skip Eco-mode for high efficiency at light load
