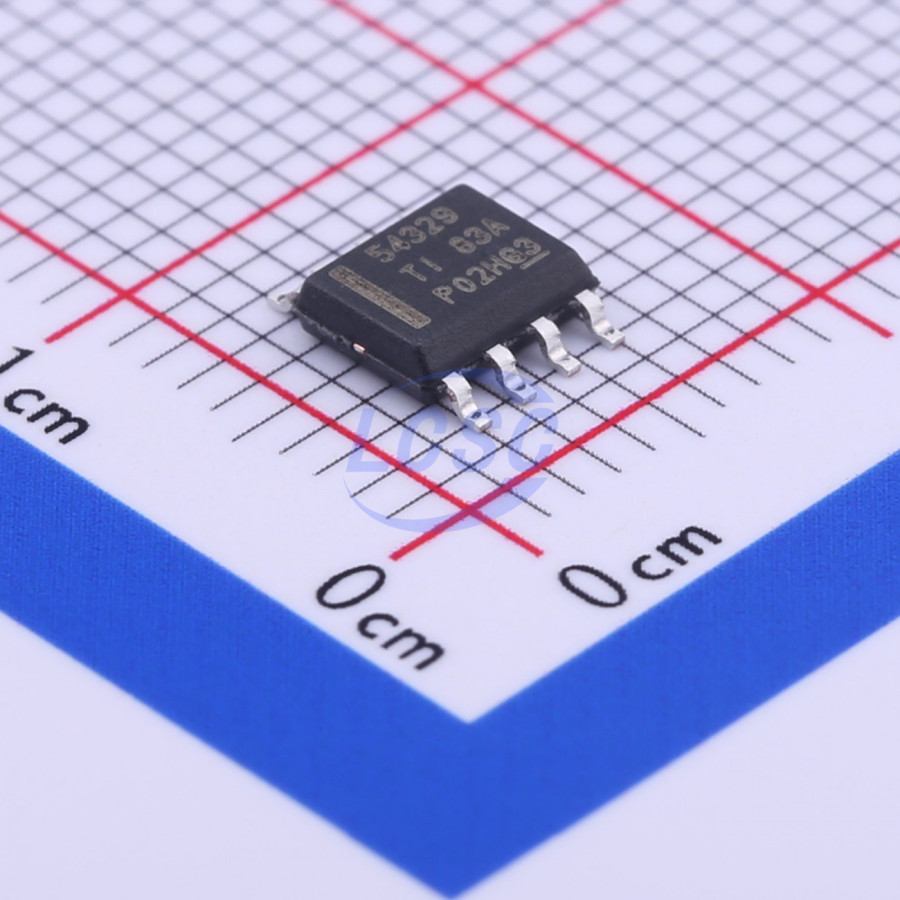

TPS54329DDAR
650kHz Step-down type Adjustable 760mV~7V 3A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8-EPROHS3 CompliantActive
3A Synchronous Step-Down Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS54329DDAR
- Store part #
- C37647
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,886 in stock
#C37647
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.99 | ₹62.99 |
| 10+ | ₹49.53 | ₹495.30 |
| 30+ | ₹43.88 | ₹1,316.40 |
| 100+ | ₹36.71 | ₹3,671.00 |
| 500+ | ₹33.67 | ₹16,835.00 |
| 1,000+ | ₹31.71 | ₹31,710.00 |
1 × ₹62.99
₹62.99
excl. GST
₹74.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS54329DDAR
₹62.99 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 650kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 760mV~7V
- Output Current
- 3A
- Quiescent Current
- 800uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.401 g
Overview
D-CAP2™Mode Enables Fast Transient Response Low Output Ripple and Allows Ceramic Output Capacitor Wide VIN Input Voltage Range: 4.5 V to 18 V Output Voltage Range: 0.76 V to 7.0 V Highly Efficient Integrated FETs Optimized for Lower Duty Cycle Applications - 100 mΩ (High Side) and 74 mΩ (Low Side) High Efficiency, Less Than 10 μA at Shutdown High Initial Bandgap Reference Accuracy Adjustable Soft Start • Pre-Biased Soft Start 650-kHz Switching Frequency (fSW) Cycle By Cycle Over Current Limit
Applications
- Wide Range of Applications for Low Voltage System
- Digital TV Power Supply
- High Definition Blu-ray Disc Players
- Networking Home Terminal
- Digital Set Top Box (STB)
Key features
- D-CAP2™Mode Enables Fast Transient Response
- Low Output Ripple
- Allows Ceramic Output Capacitor
- Wide VIN Input Voltage Range: 4.5 V to 18 V
- Output Voltage Range: 0.76 V to 7.0 V
- Highly Efficient Integrated FETs Optimized for Lower Duty Cycle Applications - 100 mΩ (High Side) and 74 mΩ (Low Side)
- High Efficiency, Less Than 10 μA at Shutdown
- High Initial Bandgap Reference Accuracy
- Adjustable Soft Start
- Pre-Biased Soft Start
- 650-kHz Switching Frequency (fSW)
- Cycle By Cycle Over Current Limit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS54329DDA#C1356131TI · SO-8 | TI | SO-8 | 20 | ₹243.72 · 20 in stock | View |
 | TPS54329EDDAR#C38344TI · SOIC-8-EP | TI | SOIC-8-EP | 107 | ₹236.86 · 107 in stock | View |
 | TPS54428DDAR#C138717TI · HSOP-8-EP | TI | HSOP-8-EP | 146 | ₹78.03 · 146 in stock | View |
 | RT6206AHGSP#C2976593RICHTEK · SOP-8-EP | RICHTEK | SOP-8-EP | 140 | ₹149.55 · 140 in stock | View |
 | TPS54328DDAR#C41314TI · SOIC-8-EP | TI | SOIC-8-EP | 986 | ₹72.86 · 986 in stock | View |
